Speed Signal Circuit: Procedure

1. Disconnect the S23 amplifier connector.

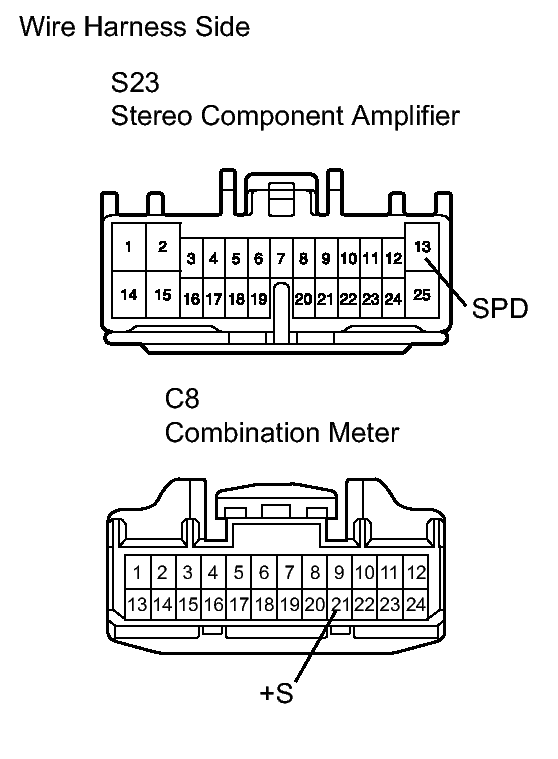

   Fig 1: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the C8 meter connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   S23-13 (SPD) - C8-21 (+S)	Below 1 Ω
   S23-13 (SPD) - Body ground	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

1. Jack up either of the rear wheels.
   Fig 2: Identifying Connector Terminals & Voltage Pulse

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Move the shift lever to N.
3. Measure the voltage of the meter connectors.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   C8-21 (+S) - Body ground	Ignition switch ON and turn rear wheel	Voltage is pulsed

NG → See step   3

NG → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
