Transfer Unit: Components: Illustration

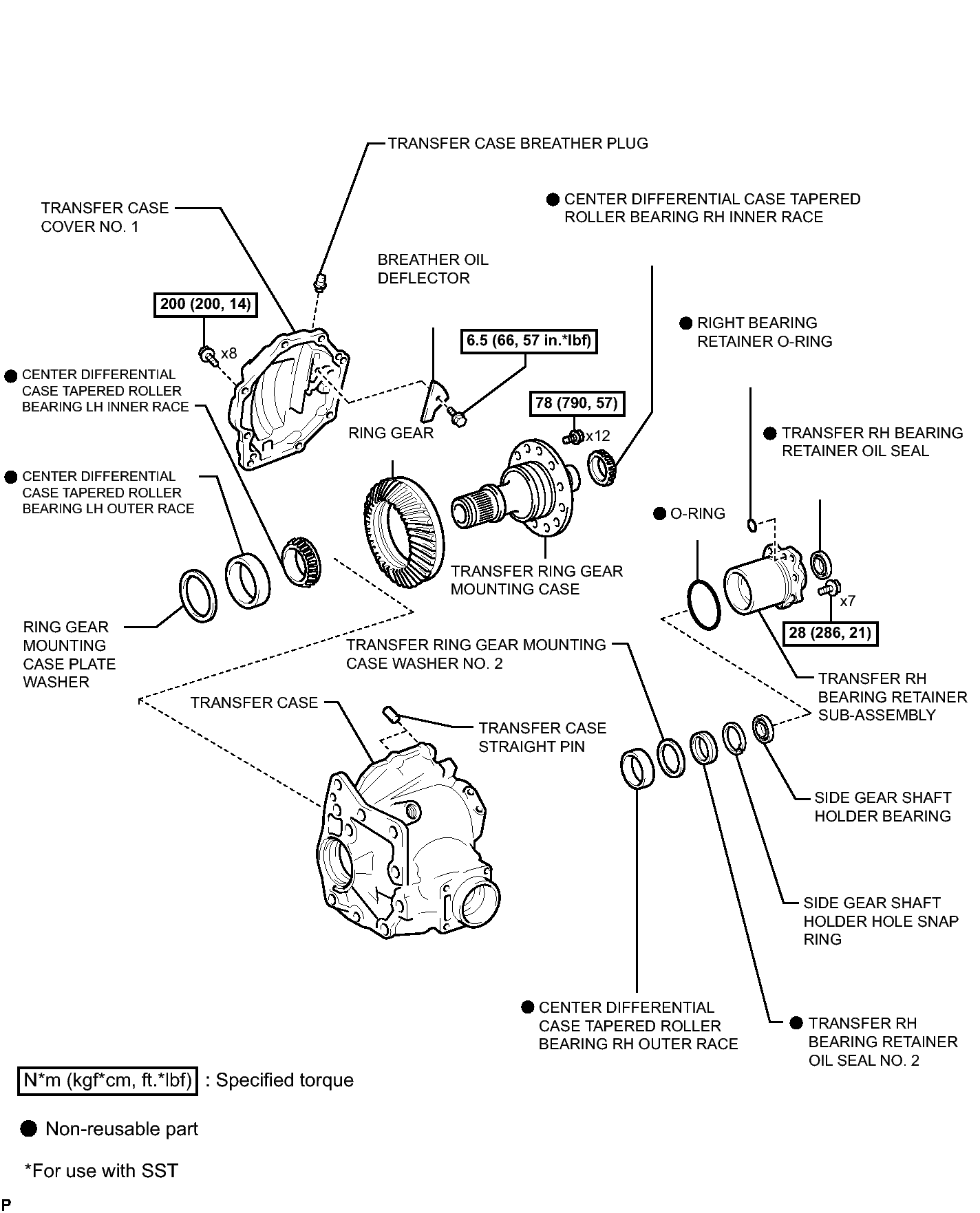

Fig 1: Identifying Transfer Unit Replacement Components With Torque Specifications (1 Of 2)
GTY132420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

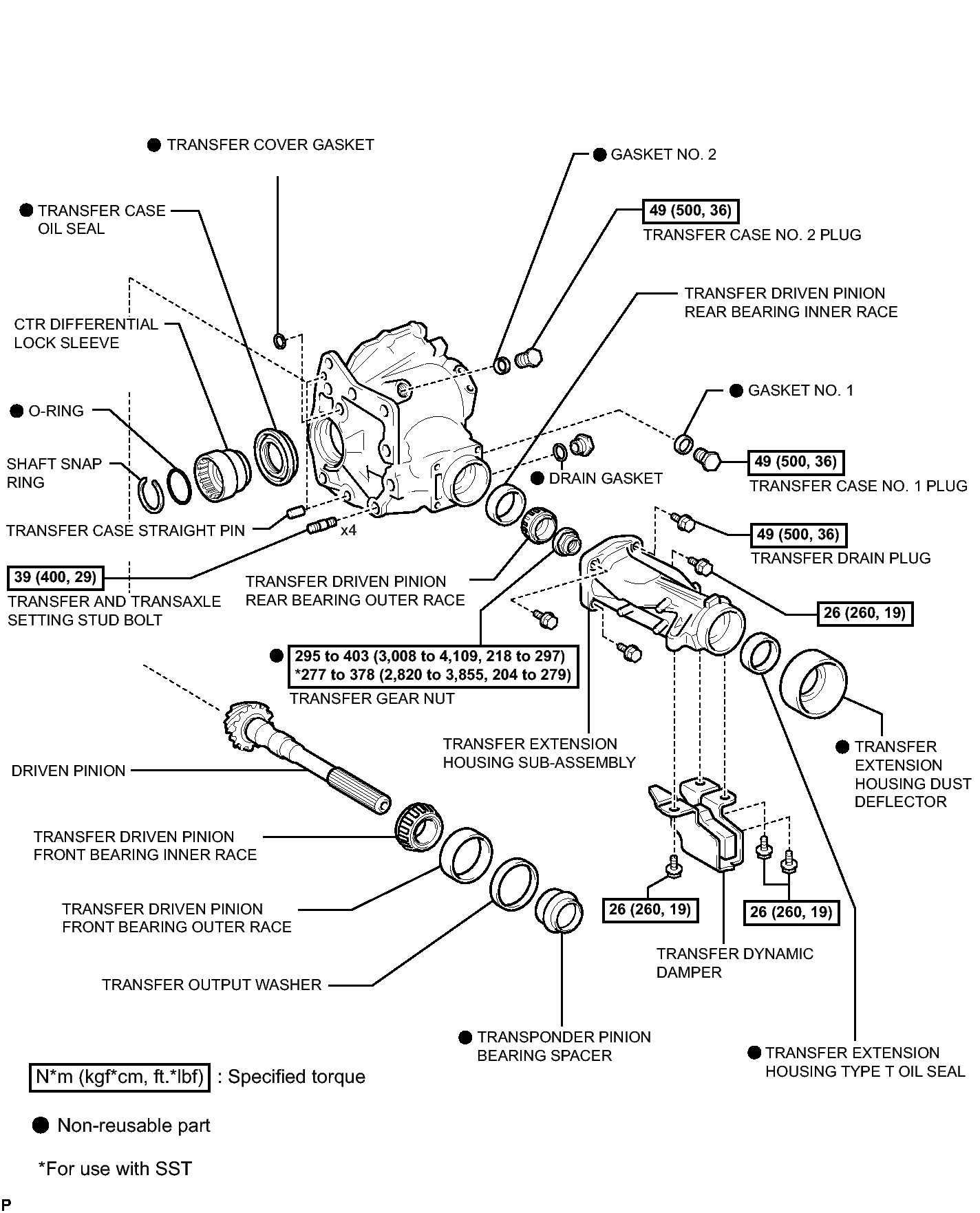

Fig 1: Identifying Transfer Unit Replacement Components With Torque Specifications (2 Of 2)
GTY113295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
