Transfer Assembly: Components: Illustration

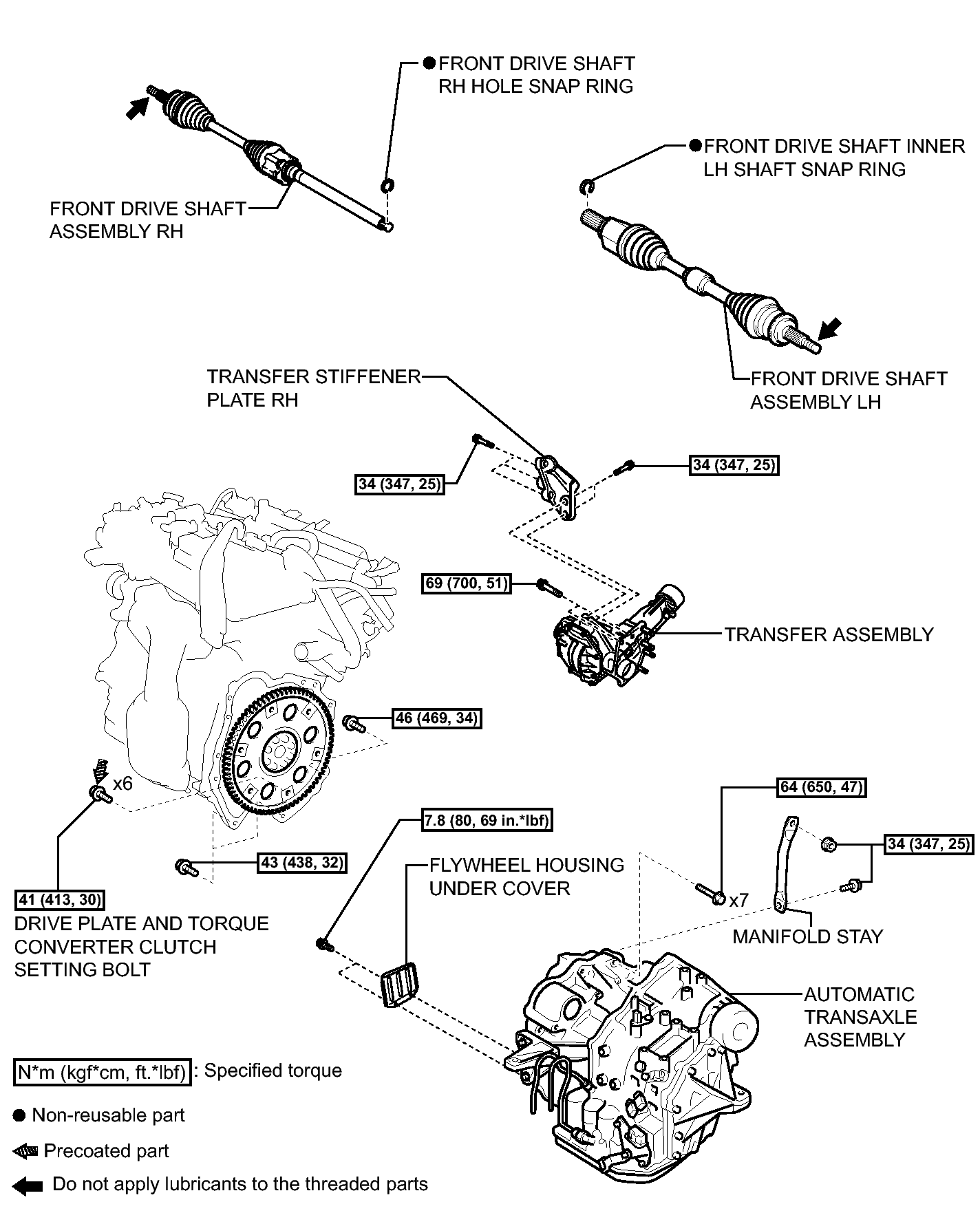

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications

GTY127201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
