Seat Heater (Front): Notes

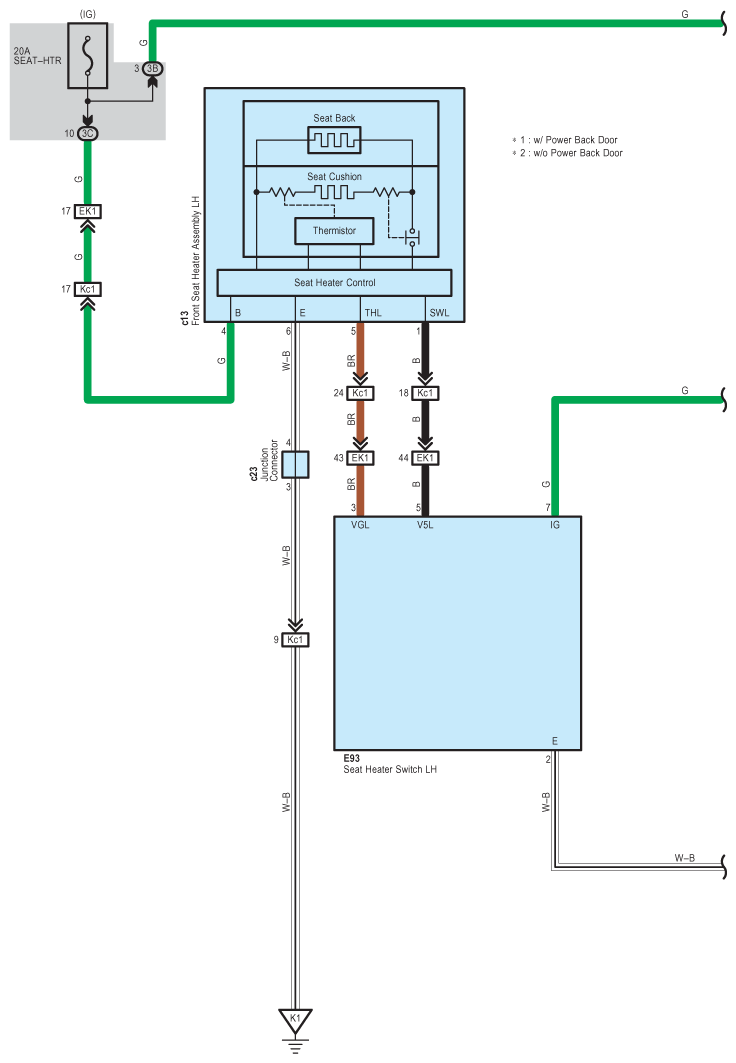

Fig 1: Seat Heater (Front) - Circuit Diagram (1 Of 2)
G07600810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

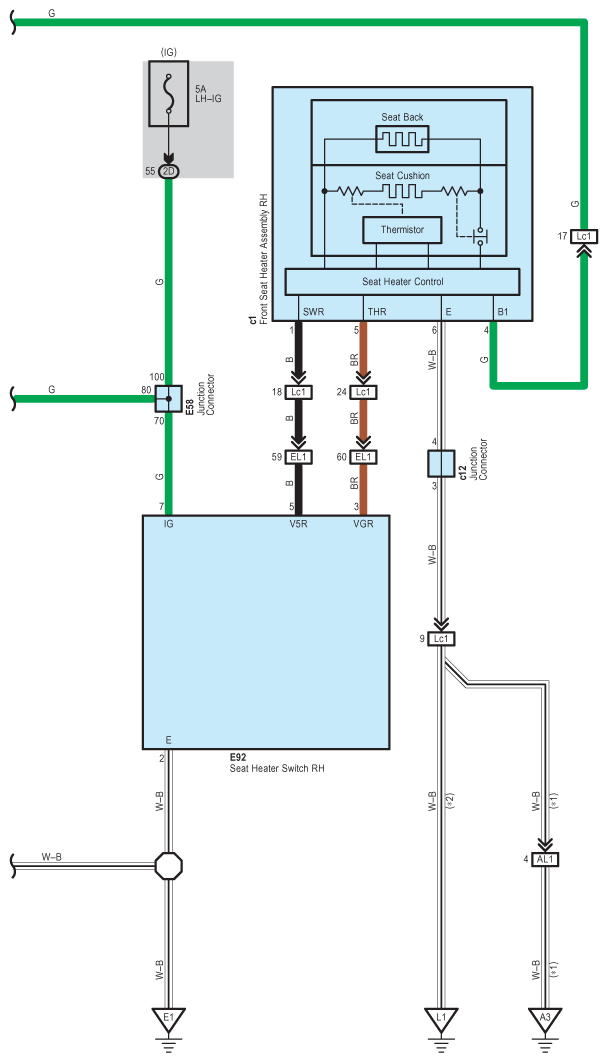

Fig 2: Seat Heater (Front) - Circuit Diagram (2 Of 2)
G07600811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
