Power Outlet (12V): Notes

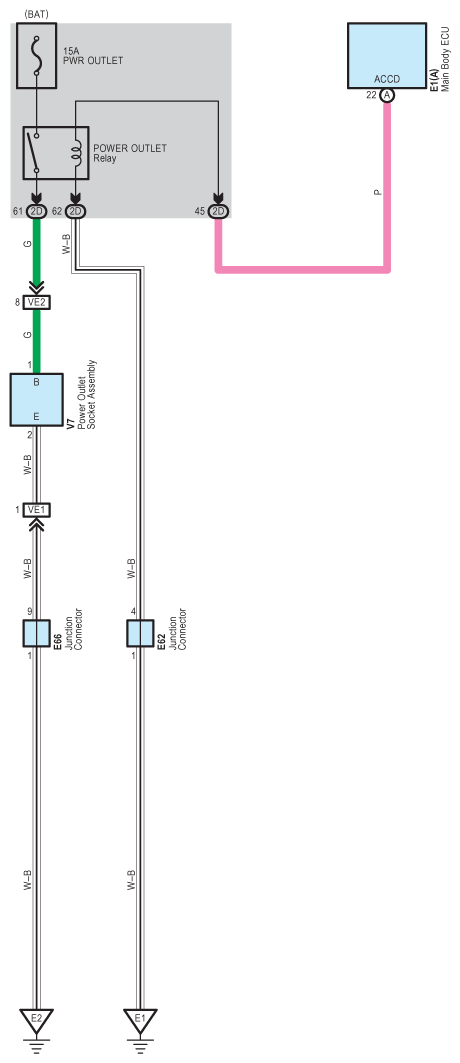

Fig 1: Power Outlet (12V) - Circuit Diagram

G07600816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
