Display Signal Circuit between Multi-display and Television Camera Assembly: Wiring Diagram

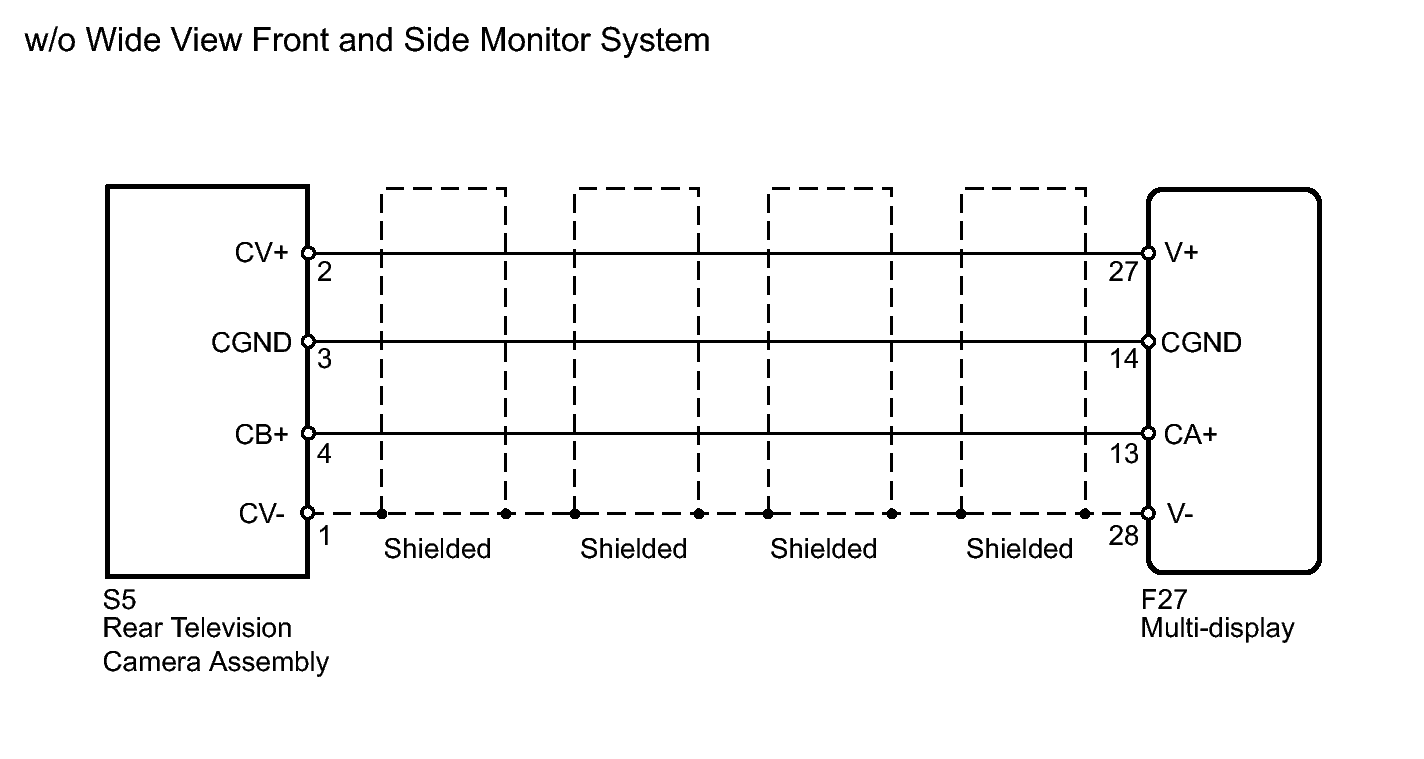

Fig 1: Rear Television Camera Assembly - Wiring Diagram (Without Wide View Front & Side Monitor System)
GTY154263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

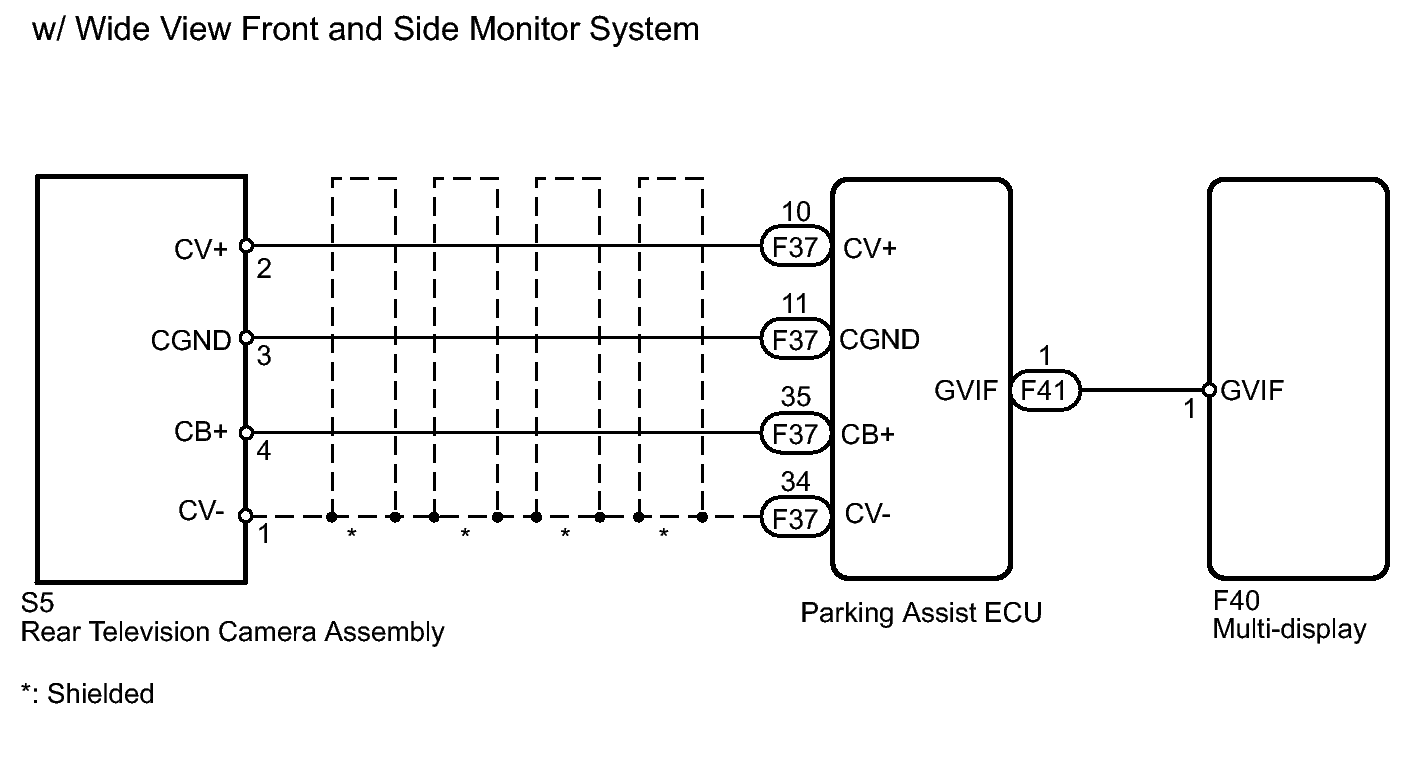

Fig 2: Rear Television Camera Assembly - Wiring Diagram (With Wide View Front & Side Monitor System)
GTY128298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
