Sound Signal Circuit between Multi-display Controller and Navigation Assembly: Wiring Diagram

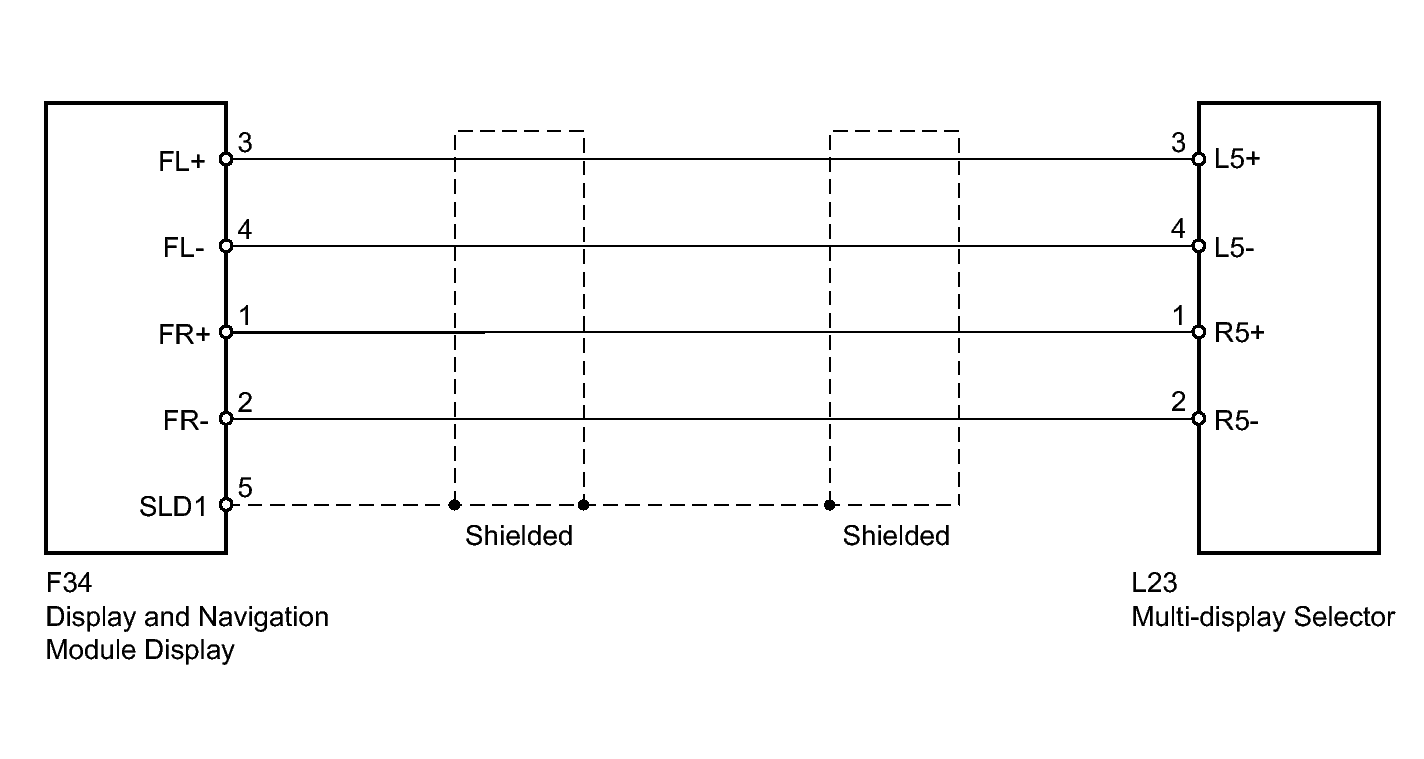

Fig 1: Sound Signal Circuit Between Multi-Display Controller And Navigation Assembly - Wiring Diagram
GTY153514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
