Sound Signal Circuit between Multi-display Controller and Navigation Assembly: Procedure

1. Disconnect the F34 navigation connector.

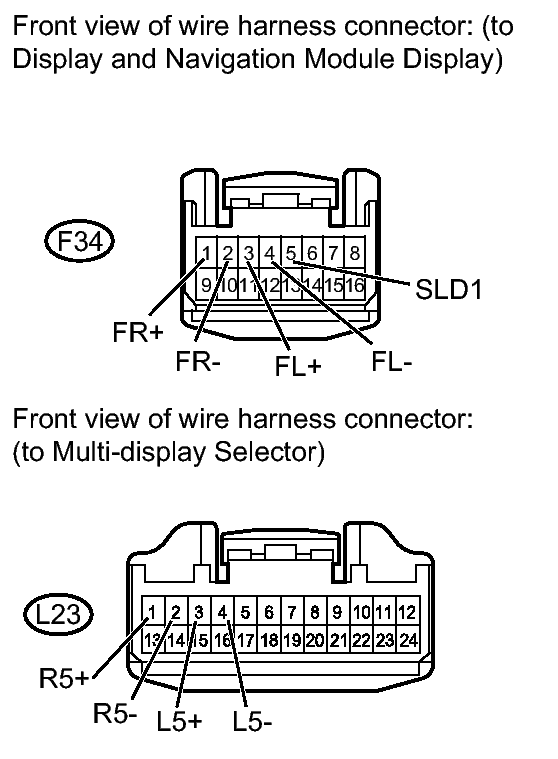

   Fig 1: Identifying F34 Navigation Connector And L23 Selector Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the L23 selector connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F34-3 (FL+) - L23-3 (L5+)	Always	Below 1 Ω
   F34-4 (FL-) - L23-4 (L5-)
   F34-1 (FR+) - L23-1 (R5+)
   F34-2 (FR-) - L23-2 (R5-)
   F34-3 (FL+) - Body ground	Always	10 kΩ or higher
   F34-4 (FL-) - Body ground
   F34-1 (FR+) - Body ground
   F34-2 (FR-) - Body ground
   F34-5 (SLD1) - Body ground

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the F34 navigation connector.
   Fig 2: Identifying F34 Navigation Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using an oscilloscope, check the signal waveform between each terminal and body ground according to the conditions shown in the chart below.

   Signal Waveform

   Tester Connection	Condition	Specified Condition
   L23-3 (L5+) - Body ground	Audio sound is being produced	A waveform synchronized with sound is output
   L23-4 (L5-) - Body ground
   L23-1 (R5+) - Body ground
   L23-2 (R5-) - Body ground

NG → See step   4

OK → See step   3
