Mute Signal Circuit between Navigation Assembly and Multi-display Controller: Procedure

1. Measure the voltage according to the value(s) in the table below.
   Fig 1: Identifying Multi-Display Selector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   L23-6 (MUT5) - Body ground	Engine switch on (ACC), audio system is playing → changing modes	3.5 V or higher → Below 1 V

NG → See step   2

OK → See step   3

1. Disconnect the F34 navigation module display connector.

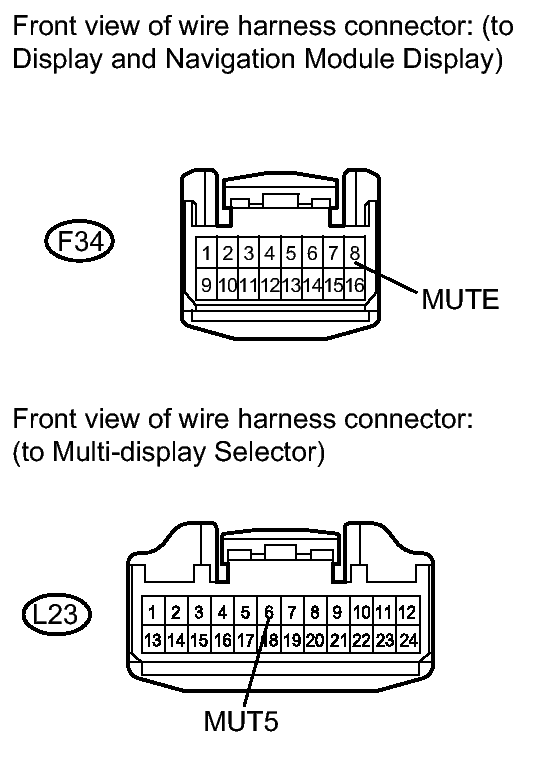

   Fig 2: Identifying F34 Navigation Module Display Connector And L23 Selector Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the L23 selector connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F34-8 (MUTE) - L23-6 (MUT5)	Always	Below 1 Ω
   F34-8 (MUTE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   4
