DTC 5-1: LEXUS Link Communication Error: Wiring Diagram

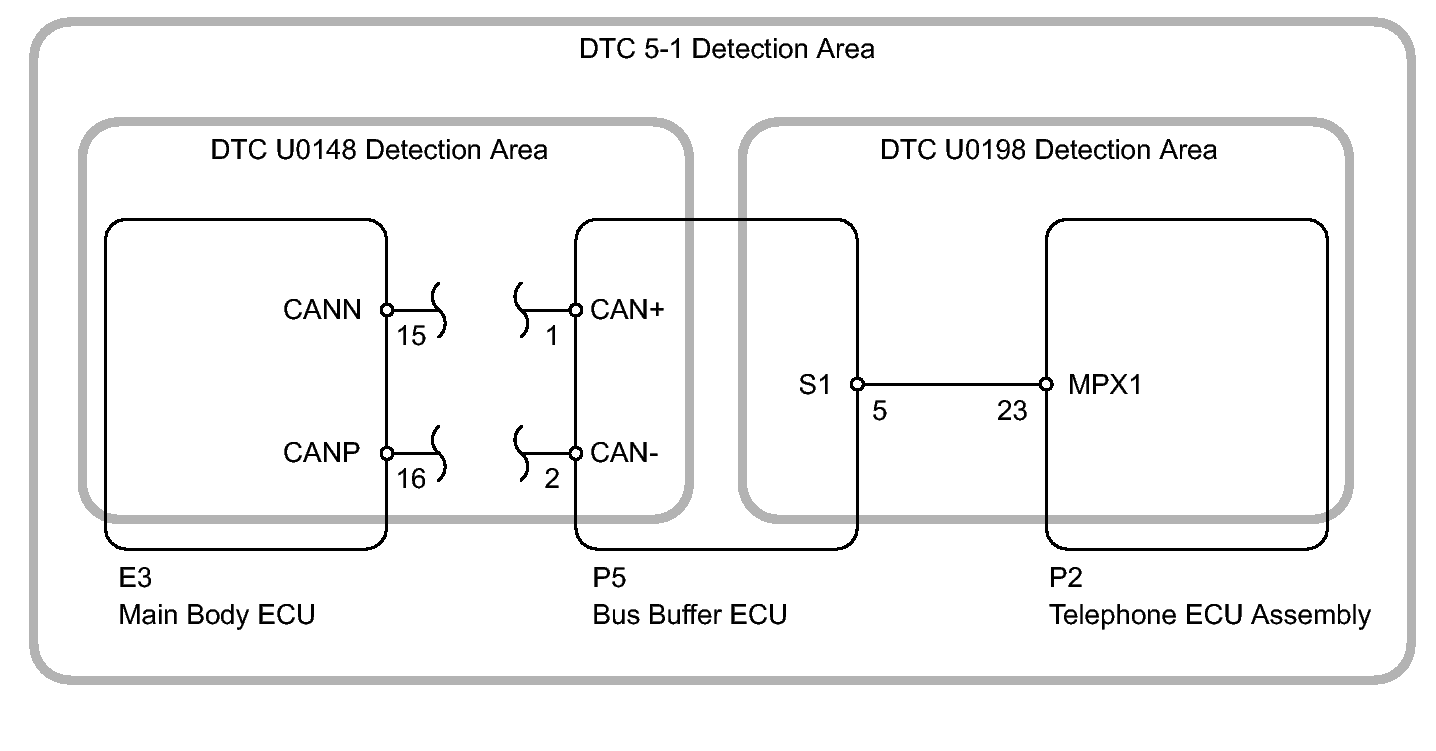

Fig 1: Main Body ECU - Wiring Diagram

GTY133345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
