DTC 4-7: EMERGENCY, VOL+ or VOL- Button has Connection Error: Wiring Diagram

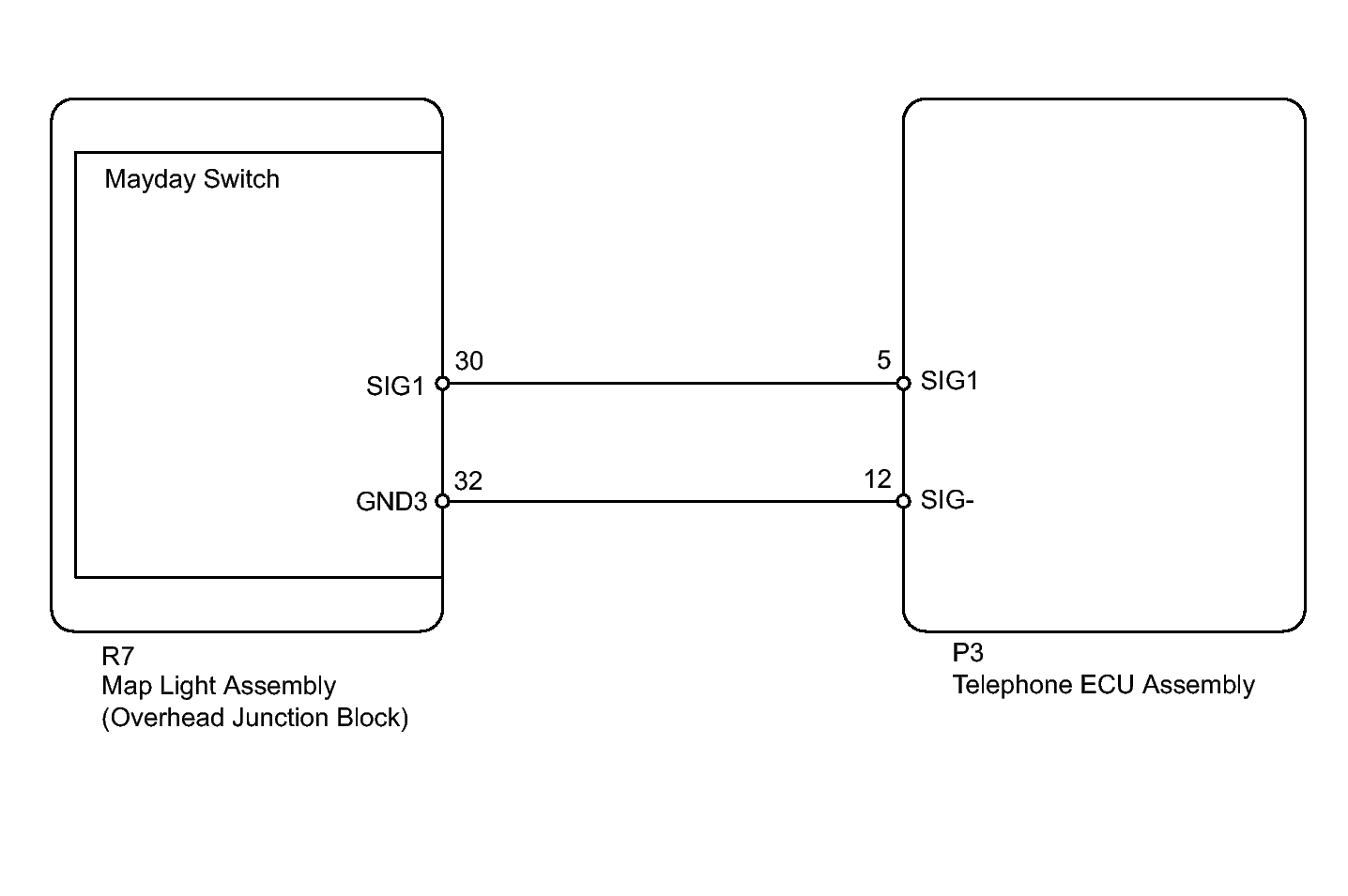

Fig 1: Map Light Assembly - Wiring Diagram

GTY116882

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
