DTC 4-2: Green LED Error: Procedure

CHECK HARNESS AND CONNECTOR (TELEPHONE ECU ASSEMBLY - MAP LIGHT ASSEMBLY)

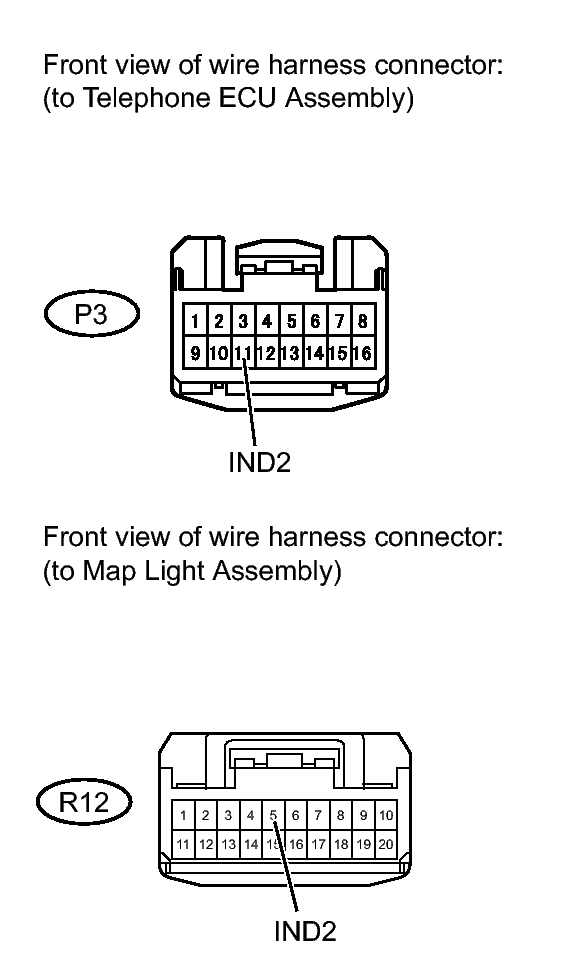

Fig 1: Identifying P3 And R12 Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
P3-11 (IND2) - R12-5 (IND2)	Always	Below 1 Ω
P3-11 (IND2) or R12-5 (IND2) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR THEN CLEAR HISTORIC DTC

OK: Go to next step

CHECK MAP LIGHT ASSEMBLY (GREEN LED OPERATION)
1. Temporarily replace the map light with a new or normally functioning one. Refer to REMOVAL .
2. Check that the system operates normally.
  OK

  Green LED operates normally.
NG → See step 3

OK → See step 5
REPLACE TELEPHONE ECU ASSEMBLY TOGETHER WITH MAYDAY BATTERY
NEXT → See step 4
PERFORM REGISTRATION. Refer to REGISTRATION
END (MAP LIGHT (GREEN LED) IS FAULTY; CLEAR HISTORIC DTC). Refer to DTC CHECK / CLEAR
