DTC 4-1: Red LED Error: Procedure

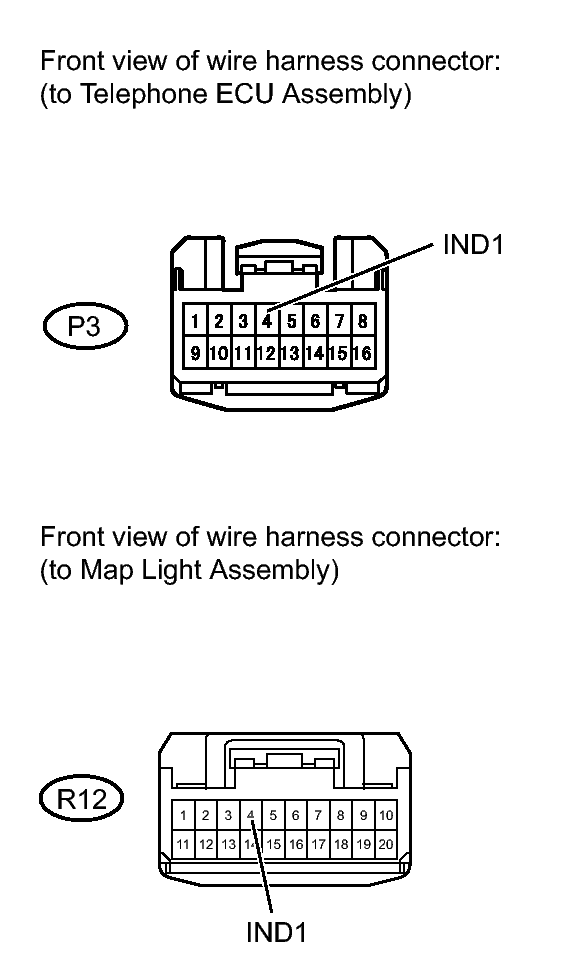

- CHECK HARNESS AND CONNECTOR (TELEPHONE ECU ASSEMBLY - MAP LIGHT ASSEMBLY)
- Disconnect the P3 ECU connector.
- Disconnect the R12 map light connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition P3-4 (IND1) - R12-4 (IND1) Always Below 1 Ω P3-4 (IND1) or R12-4 (IND1) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR THEN CLEAR HISTORIC DTC
OK: Go to next step
- CHECK MAP LIGHT ASSEMBLY (RED LED OPERATION)
- Temporarily replace the map light with a new or normally functioning one. Refer to REMOVAL .
- Check that the system operates normally.
OK
Red LED operates normally.
NG → See step 3
OK → See step 5
- REPLACE TELEPHONE ECU ASSEMBLY TOGETHER WITH MAYDAY BATTERY
NEXT → See step 4
- PERFORM REGISTRATION. Refer to REGISTRATION
- END (MAP LIGHT (RED LED) IS FAULTY; CLEAR HISTORIC DTC). Refer to DTC CHECK / CLEAR
