Display and Navigation Assembly Communication Stop Mode: Wiring Diagram

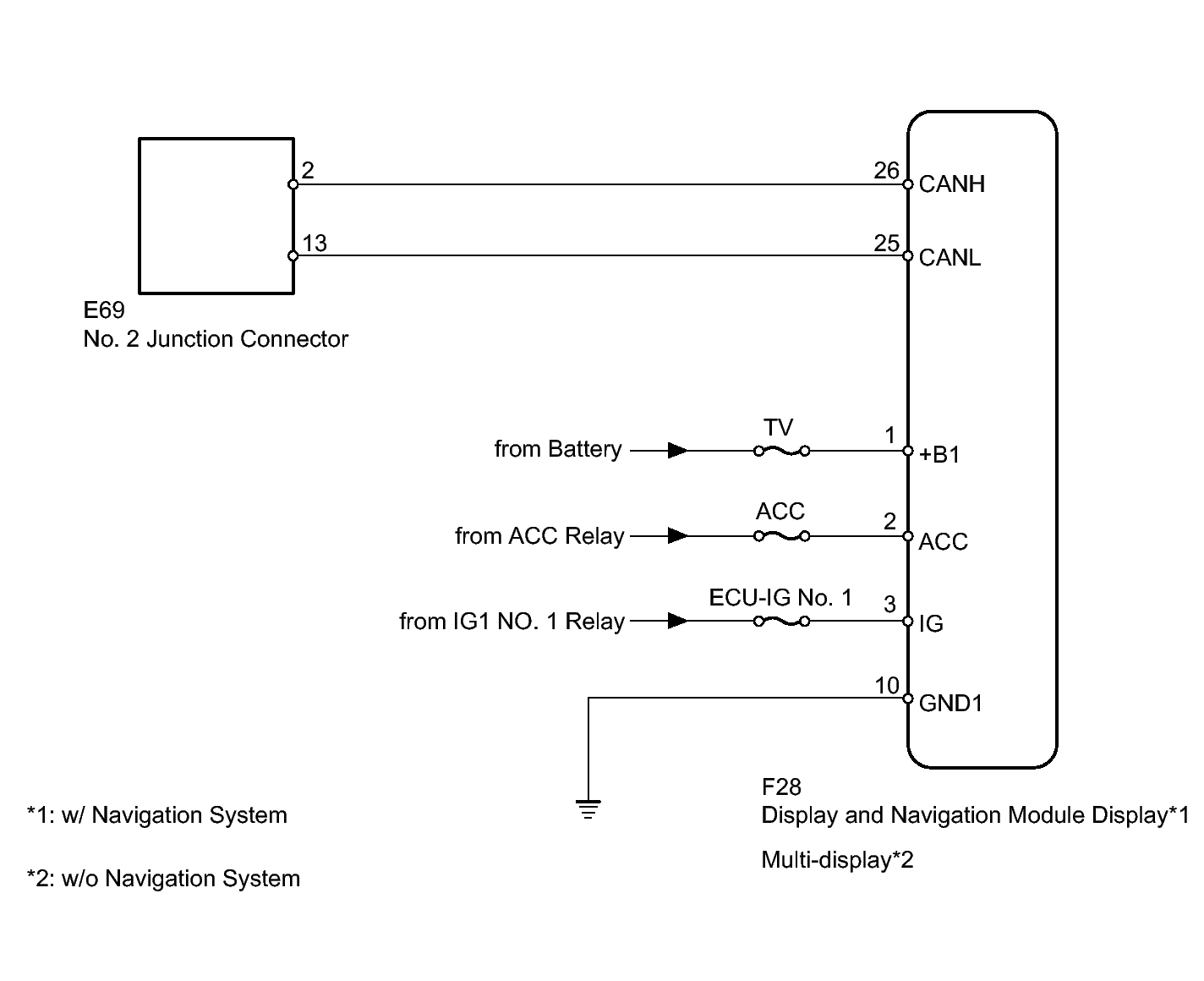

Fig 1: Display And Navigation Assembly Communication Stop Mode - Wiring Diagram

GTY109215

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
