DTC U0327: Software Incompatibility with Vehicle Security Control Module: Wiring Diagram

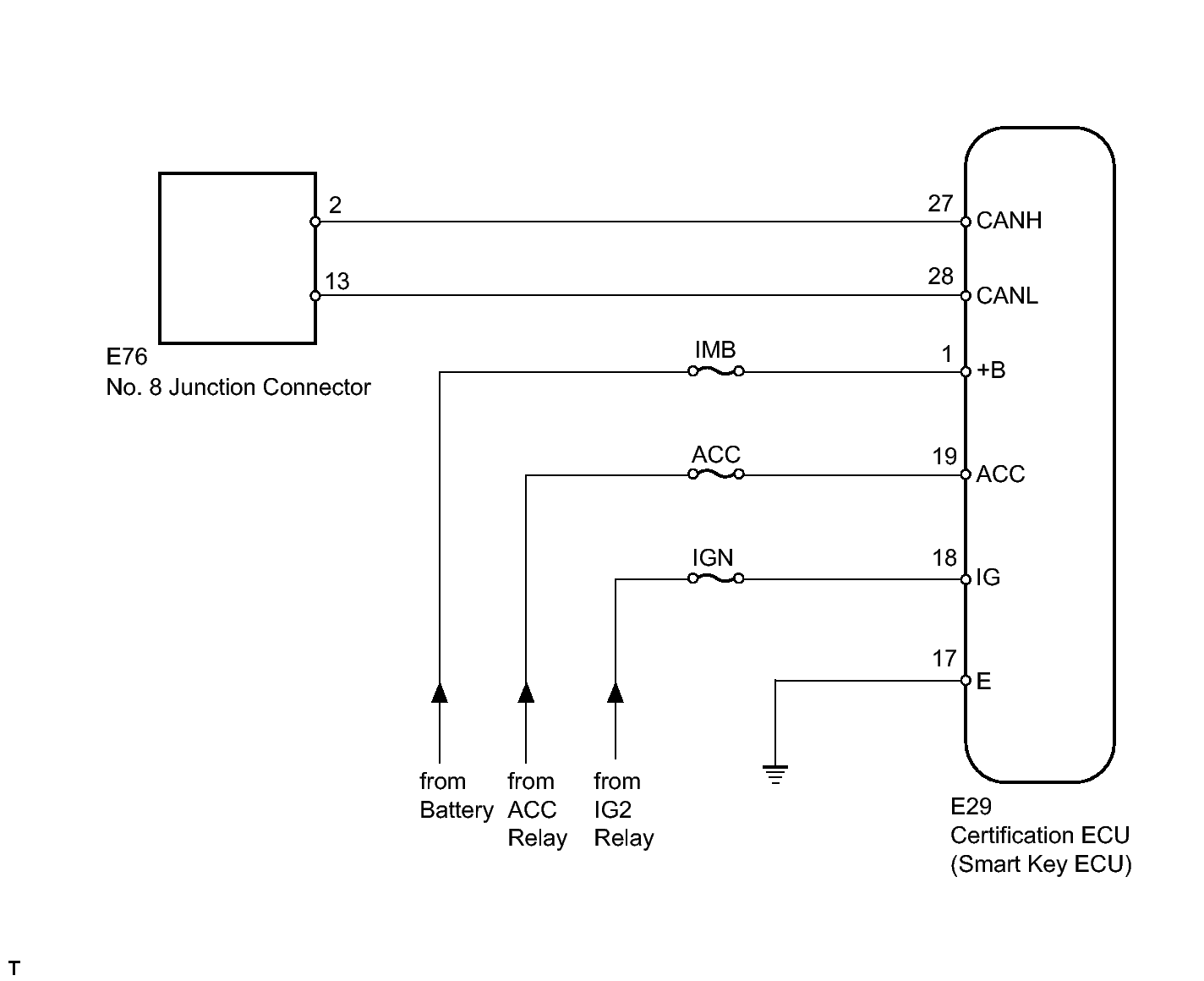

Fig 1: Software Incompatibility With Vehicle Security Control Module - Wiring Diagram
GTY109256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
