Display Signal Circuit between Multi-display and Television Camera Assembly: Procedure

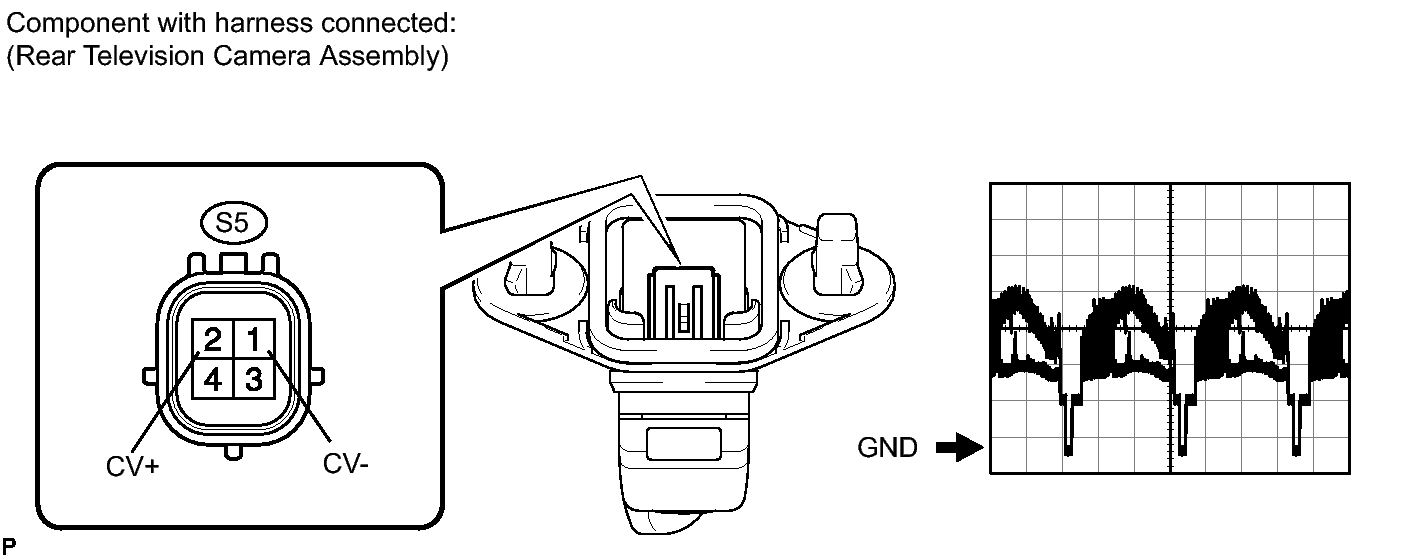

Fig 1: Identifying Rear Television Camera Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using an oscilloscope, check the waveform.
   MEASUREMENT CONDITION



   Item	Content
   Terminal No. (Symbol)	S5-2 (CV+) - S5-1 (CV-)
   Tool Setting	0.2 V/DIV., 20 μs/DIV.
   Condition	Engine switch on (IG), shift lever in R

   OK

   Waveform is as shown in illustration.

NG → See step   8

OK: Go to next step

1. Check vehicle type.
   RESULT



   Result	Proceed to
   w/ Wide View Front and Side Monitor System	A
   w/o Wide View Front and Side Monitor System	B

B → See step   6

A: Go to next step

1. Disconnect the F37 ECU connector.

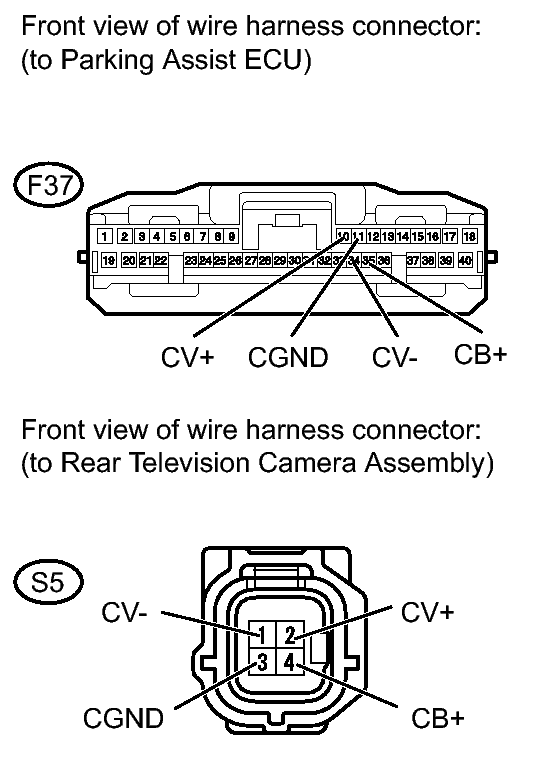

   Fig 2: Identifying F37 And S5 Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the S5 camera connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F37-35 (CB+) - S5-4 (CB+)	Always	Below 1 Ω
   F37-11 (CGND) - S5-3 (CGND)	Always	Below 1 Ω
   F37-10 (CV+) - S5-2 (CV+)	Always	Below 1 Ω
   F37-34 (CV-) - S5-1 (CV-)	Always	Below 1 Ω
   F37-35 (CB+) - Body ground	Always	10 kΩ or higher
   F37-11 (CGND) - Body ground	Always	10 kΩ or higher
   F37-10 (CV+) - Body ground	Always	10 kΩ or higher
   F37-34 (CV-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the digital cable between the parking assist ECU and multi-display with a new one.

NEXT: Go to next step

1. Turn the engine switch on (IG).
2. When the shift lever is moved to R, check that the image displays normally on the screen.

   OK

   Image displays normally on the screen.

NG → See step   9

OK → END

Fig 3: Identifying F27 Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   F27-13 (CA+) - F27-14 (CGND)	Engine switch on (IG), shift lever in R	5.8 to 6.5 V

NG → See step   10

OK: Go to next step

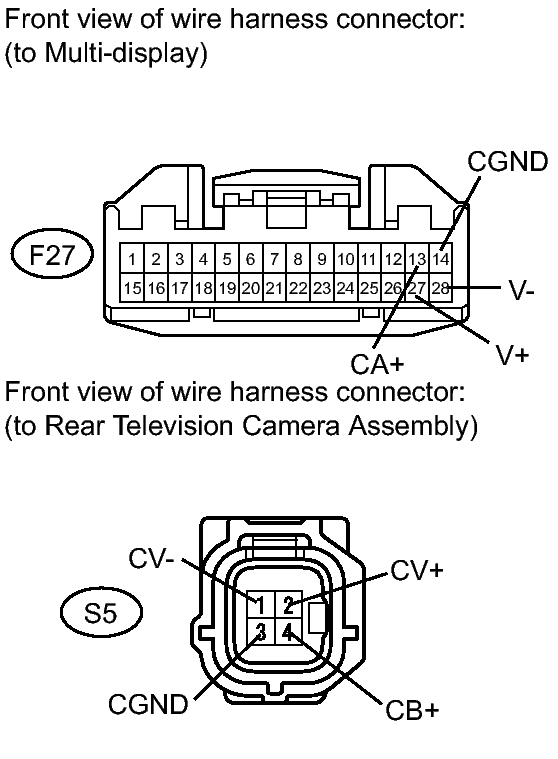

Fig 4: Identifying F27 And S5 Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the F27 multi-display connector.
2. Disconnect the S5 camera connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F27-13 (CA+) - S5-4 (CB+)	Always	Below 1 Ω
   F27-14 (CGND) - S5-3 (CGND)	Always	Below 1 Ω
   F27-27 (V+) - S5-2 (CV+)	Always	Below 1 Ω
   F27-28 (V-) - S5-1 (CV-)	Always	Below 1 Ω
   F27-13 (CA+) - Body ground	Always	10 kΩ or higher
   F27-14 (CGND) - Body ground	Always	10 kΩ or higher
   F27-27 (V+) - Body ground	Always	10 kΩ or higher
   F27-28 (V-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   11
