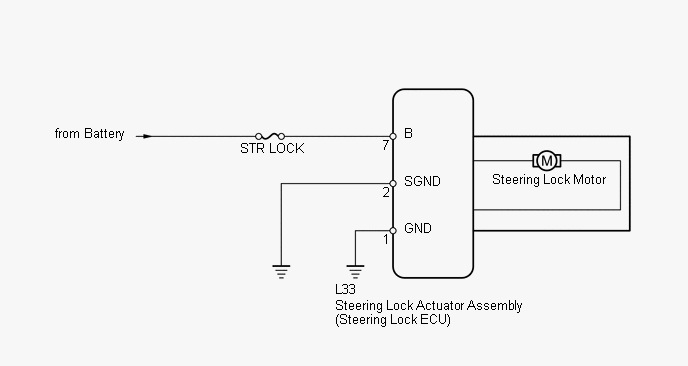

Home >> Lexus >> 2009 >> LS 600hL >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Lock System (Diagnostic Code & Circuit Tests) >> Steering Lock System >> Power Source Circuit >> Wiring Diagram
