DTC B2788: IG2 Signal Malfunction: Wiring Diagram

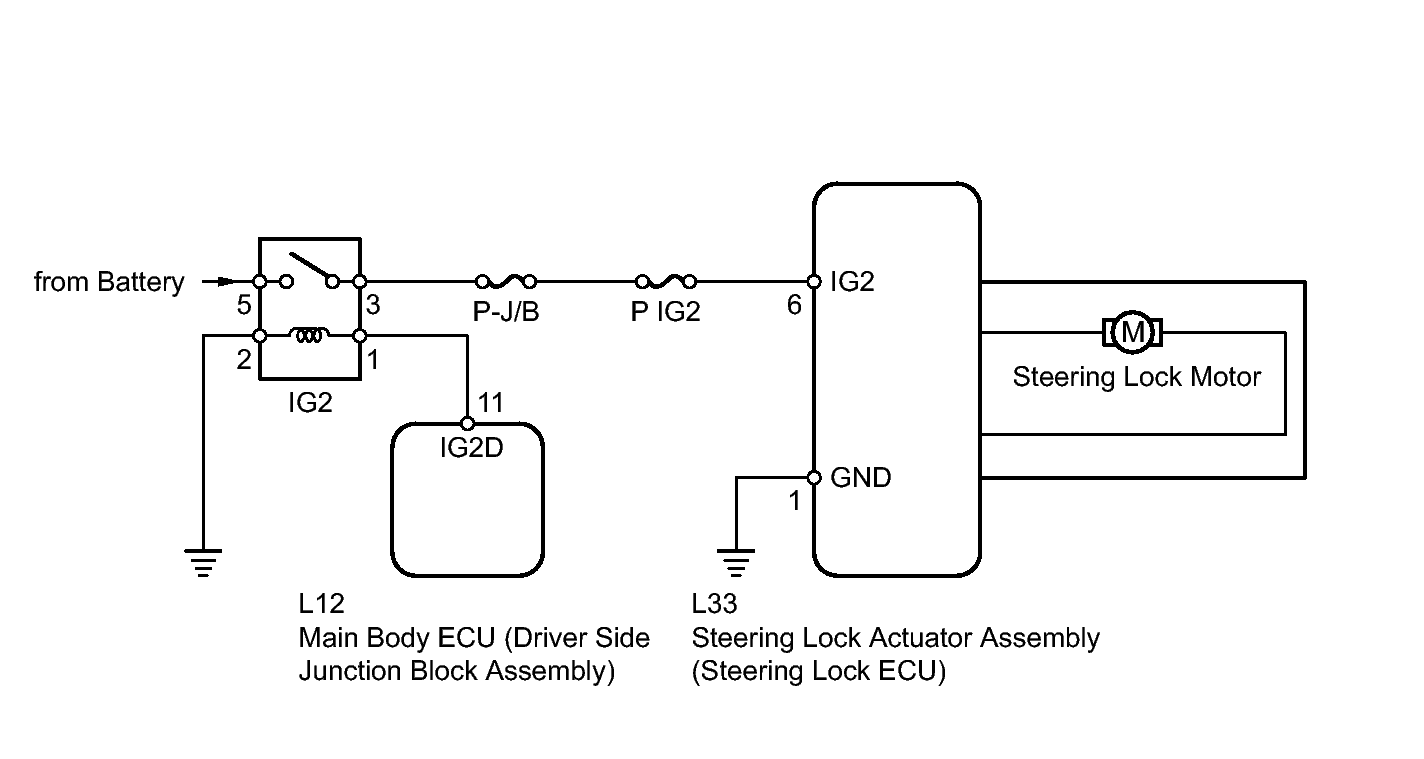

Fig 1: IG2 Signal - Wiring Diagram

GTY109868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
