DTC B2782: Power Source Control ECU Malfunction: Wiring Diagram

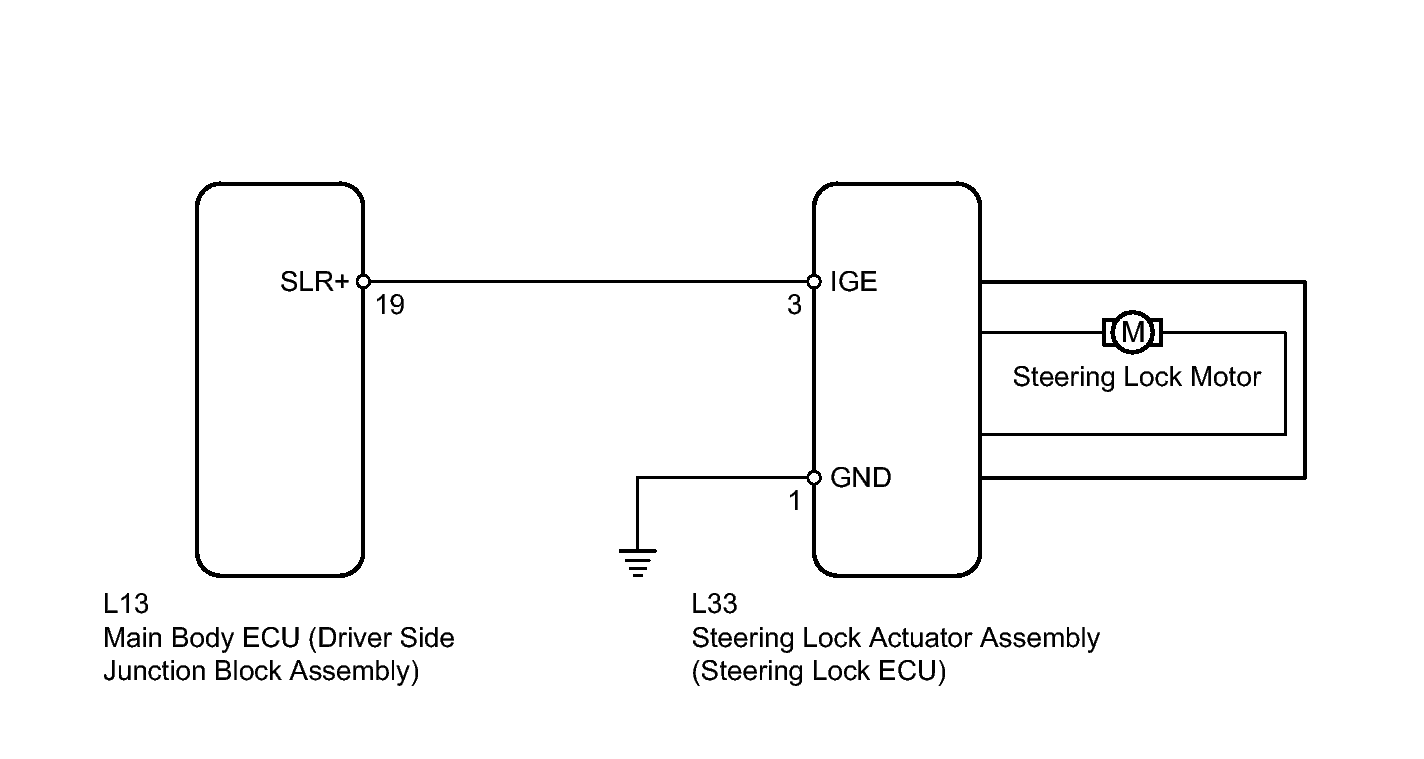

Fig 1: Power Source Control ECU - Wiring Diagram

GTY123200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
