DTC 6-4: Backup Battery Connection Error: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

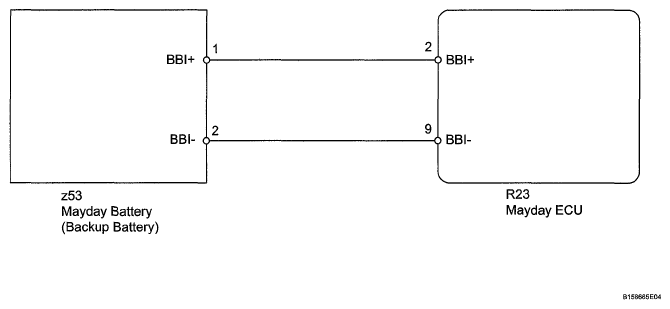

Fig 1: Backup Battery Connection Error - Wiring Diagram
G05784494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
