Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
  1. PERFORM ACTIVE TEST USING INTELLIGENT TESTER OR TECHSTREAM (SLIDING ROOF OPERATION)
    1. Select the Active Test, use the intelligent tester or Techstream to generate a control command, and then check that the sliding roof slides open / closed and tilts up / down
    1. Intelligent tester

      SLIDE ROOF

      ACTIVE TEST - SLIDE ROOF

      Tester Display Test Part Control Range Diagnostic Note
      SLIDE ROOF Operate sliding roof SLIDE CLOSE/TILT UP CLOS/UP Sliding roof SLIDE
      CLOSE or TILT UP operation occurs
      OFF Sliding roof is not operating
      Be careful to avoid injuries as this test causes vehicle parts to move
      SLIDE ROOF Operate sliding roof SLIDE OPEN/TILT DOWN OPEN/DWN Sliding roof SLIDE
      OPEN or TILT DOWN operation occurs
      OFF Sliding roof is not operating
      Be careful to avoid injuries as this test causes vehicle parts to move
    2. Techstream

    Sliding Roof

    ACTIVE TEST - SLIDING ROOF

    Tester Display Test Part Control Range Diagnostic Note
    Slide Roof Operate sliding roof SLIDE CLOSE/TILT UP CLOS/UP Sliding roof SLIDE
    CLOSE or TILT UP operation occurs
    OFF Sliding roof is not operating
    Be careful to avoid injuries as this test causes vehicle parts to move
    Slide Roof Operate sliding roof SLIDE OPEN/TILT DOWN OPEN/DWN Sliding roof SLIDE
    OPEN or TILT DOWN operation occurs
    OFF Sliding roof is not operating
    Be careful to avoid injuries as this test causes vehicle parts to move

    OK: Sliding roof operates normally.

    NG: REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY  (See REMOVAL  )

    OK: Go to next step

  2. READ VALUE USING INTELLIGENT TESTER OR TECHSTREAM (HALL IC)
    1. Use the Data List to check if the hall ICs are functioning properly
      1. Intelligent tester

        SLIDE ROOF

        DATA LIST - SLIDE ROOF

        Item Measurement Item/Range Normal Condition Diagnostic Note
        HALL IC1 STATUS Hall IC1 status/NORMAL or LOCK NORMAL Hall IC1 is normal
        LOCK Hall IC1 is abnormal
        -
        HALL IC1 PULSE Hall IC1 signal/LO or HI LO Hall IC1 output Lo
        HI Hall IC1 output Hi
        -
        HALL IC2 STATUS Hall IC2 status/NORMAL or LOCK NORMAL Hall IC2 is normal
        LOCK Hall IC2 is abnormal
        -
        HALL IC2 PULSE Hall IC2 signal/LO or HI LO Hall IC2 output Lo
        HI Hall IC2 output Hi
        -
      2. Techstream

    Sliding Roof

    DATA LIST - SLIDING ROOF

    Item Measurement Item/Range Normal Condition Diagnostic Note
    Hall IC1 Status Hall IC1 status/Normal or Lock Normal Hall IC1 is normal
    Lock Hall IC1 is abnormal
    -
    Hall IC1 Pulse Hall IC1 signal/Lo or Hi Lo Hall IC1 output Lo
    Hi Hall IC1 output Hi
    -
    Hall IC2 Status Hall IC2 status/Normal or Lock Normal Hall IC2 is normal
    Lock Hall IC2 is abnormal
    -
    Hall IC2 Pulse Hall IC2 signal/Lo or Hi Lo Hall IC2 output Lo
    Hi Hall IC2 output Hi
    -

    OK: Tester displays other than "LOCK" or "Lock".

    NG: REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY  (See REMOVAL  )

    OK: Go to next step

  3. READ VALUE USING INTELLIGENT TESTER OR TECHSTREAM (SLIDING ROOF SWITCH)
    1. Use the Data List to check if the sliding roof switch is functioning properly
      1. Intelligent tester

        SLIDE ROOF

        DATA LIST - SLIDE ROOF

        Item Measurement Item/Range Normal Condition Diagnostic Note
        OPEN SW Sliding roof switch open signal/ ON or OFF ON OPEN switch is pressed
        OFF OPEN switch is not pressed
        -
        CLOSE SW Sliding roof switch close signal/ ON or OFF ON CLOSE switch is pressed
        OFF CLOSE switch is not pressed
        -
        UPSW Sliding roof switch tilt up signal/ ON or OFF ON UP switch is pressed
        OFF UP switch is not pressed
        -
        DOWN SW Sliding roof switch tilt down signal/ON or OFF ON DOWN switch is pressed
        OFF DOWN switch is not pressed
        -
      2. Techstream

    Sliding Roof

    DATA LIST - SLIDING ROOF

    Item Measurement Item/Range Normal Condition Diagnostic Note
    Open Switch Sliding roof switch open signal/ ON or OFF ON OPEN switch is pressed
    OFF OPEN switch is not pressed
    -
    Close Switch Sliding roof switch close signal/ ON or OFF ON CLOSE switch is pressed
    OFF CLOSE switch is not pressed
    -
    Up Switch Sliding roof switch tilt up signal/ ON or OFF ON UP switch is pressed
    OFF UP switch is not pressed
    -
    Down Switch Sliding roof switch tilt down signal/ON or OFF ON DOWN switch is pressed
    OFF DOWN switch is not pressed
    -

    OK: When the switch is operating, the intelligent tester or Techstream should display as shown in the table.

    NG:  Go to step  4

    OK: REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY  (See REMOVAL  )

  4. INSPECT MAP LIGHT ASSEMBLY (SLIDING ROOF SWITCH)

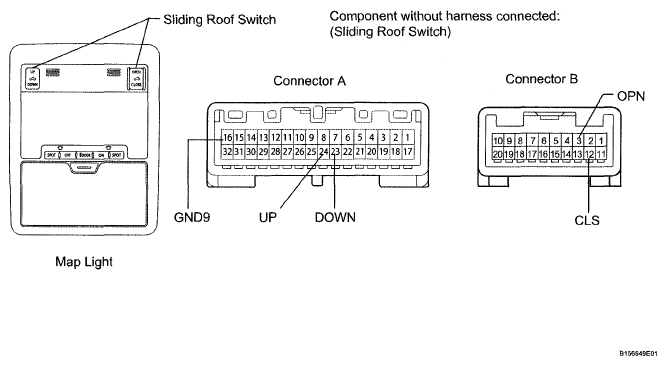

    Fig 1: Identifying Sliding Roof Switch Connectors
    G04953269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the map light (see REMOVAL )
    2. Measure the resistance according to the value(s) in the table below

    Standard resistance

    STANDARD RESISTANCE SPECIFICATION

    Tester Connection Switch Condition Specified Condition
    A-24 (UP) - A-16 (GND9) TILT UP Below 1 Ω
    A-24 (UP) - A-16 (GND9) Off 10 kΩ or higher
    A-23 (DOWN) - A-16 (GND9) TILT DOWN Below 1 Ω
    A-23 (DOWN) - A-16 (GND9) Off 10 kΩ or higher
    B-3 (OPN) - A-16 (GND9) SLIDE OPEN Below 1 Ω
    B-3 (OPN) - A-16 (GND9) Off 10 kΩ or higher
    B-12 (CLS) - A-16 (GND9) SLIDE CLOSE Below 1 Ω
    B-12 (CLS) - A-16 (GND9) Off 10 kΩ or higher

    NG: REPLACE MAP LIGHT ASSEMBLY (SLIDING ROOF SWITCH)

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (MAP LIGHT - SLIDING ROOF DRIVE GEAR AND BODY GROUND)

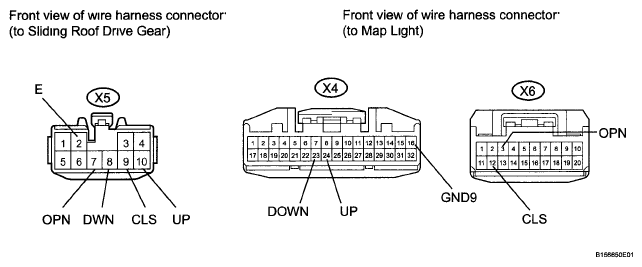

    Fig 2: Identifying X5 Drive Gear, X4 And X6 Map Light Connectors
    G05787144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the X5 drive gear connector
    2. Disconnect the X4 and X6 map light connectors.
    3. Measure the resistance according to the value(s) in the table below

    Standard resistance

    STANDARD RESISTANCE SPECIFICATION

    Tester Connection Condition Specified Condition
    X5-10 (UP) - X4-24 (UP) Always Below 1 Ω
    X5-8 (DWN) - X4-23 (DOWN) Always Below 1 Ω
    XS-7 (OPN) - X6-3 (OPN) Always Below 1 Ω
    X5-9 (CLS) - X6-12 (CLS) Always Below 1 Ω
    X4-16 (GND9) - Body ground Always Below 1 Ω
    XS-2 (E) - Body ground Always Below 1 Ω
    X5-10 (UP) or X4-24 (UP) - Body ground Always 10 kΩ or higher
    X5-8 (DWN) or X4-23 (DOWN) - Body ground Always 10 kΩ or higher
    X5-7 (OPN) or X6-3 (OPN) - Body ground Always 10 kΩ or higher
    X5-9 (CLS) or X6-12 (CLS) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY  (See REMOVAL  )
