Security Indicator Light Assembly: Inspection
WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT INDICATOR LIGHT ASSEMBLY

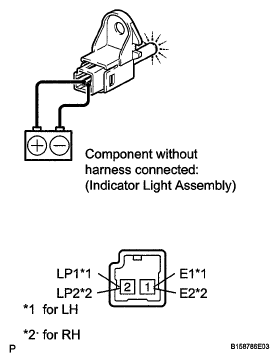

- Apply battery voltage and check the operation of the indicator light
OK
VOLTAGE SPECIFICATIONMeasurement Condition Specified Condition Battery positive (+) → Terminal 2 (LP2*1, LP1*2)
Battery negative (-) → Terminal 1 (E2*1, E1*2)Illuminates NOTE:- If the positive (+) lead and the negative (-) lead are incorrectly connected, the security indicator light will not turn on.
- A voltage of more than 12 V will damage the security indicator light.
- If the voltage is too low, the security indicator light will not turn on.
If the result is not as specified, replace the indicator light assembly.
