Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

IDENTIFY COMPONENT SHOWN BY SUB-CODE
1. Enter the diagnostic mode.
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
3. Identify the component shown by the sub-code.
  HINT:
  - "118 (display and navigation assembly)" is the component shown by the sub-code in the example shown in the illustration.
  - The sub-code will be indicated by its physical address.
  - For the component list, refer to "DIAGNOSIS DISPLAY DETAILED DESCRIPTION " .

    Fig 1: Display - LAN Monitor Screen
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK POWER SOURCE CIRCUIT OF COMPONENT SHOWN BY SUB-CODE

Inspect the power source circuit of the component shown by the sub-code.

Component table

COMPONENT CHART

Component	Proceed to
Radio receiver (190)	Radio receiver power source circuit (see RADIO RECEIVER POWER SOURCE CIRCUIT )
Stereo component amplifier (440)	Stereo component amplifier power source circuit (see STEREO COMPONENT AMPLIFIER POWER SOURCE CIRCUIT )
Clock (1D6)	Clock power source circuit (see CLOCK POWER SOURCE CIRCUIT )
Television display (1F6)	Television display power source circuit (see TELEVISION DISPLAY POWER SOURCE CIRCUIT )
Parking assist ECU (1AC)	Parking assist ECU power source circuit (see ECU POWER SOURCE CIRCUIT )
Display and navigation assembly (118)	Display and navigation assembly power source circuit (see DISPLAY AND NAVIGATION ASSEMBLY POWER SOURCE CIRCUIT )
Rear power seat module switch (1C0)	Rear power seat module switch power source circuit (see REAR SEAT CONTROL SWITCH POWER SOURCE CIRCUIT )
Satellite radio tuner (1F1)	Satellite radio tuner power source circuit (see SATELLITE RADIO TUNER POWER SOURCE CIRCUIT )

If the power source circuit is operating normally, proceed to the next step

INSPECT RADIO RECEIVER ASSEMBLY

Fig 2: Identifying L51, L52 And L53 Radio Receiver Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the L51, L52 and L53 receiver connectors.

Measure the resistance according to the value(s) in the table below.

Standard resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Condition	Specified Condition
L53-9 (TXM+) - L53-10 (TXM-)	Always	60 to 80 Ω
L51-5 (ATX+) - L51-15 (ATX-)
L52-9 (TX+) - L52-10 (TX-)

NG: REPLACE RADIO RECEIVER ASSEMBLY (See REMOVAL )

OK: Go to next step

CHECK HARNESS AND CONNECTOR (DISC PLAYER - COMPONENT SHOWN BY SUBCODE)
HINT:
- Start the check from the circuit that is near the component shown by the sub-code first.
- For details of the connectors, refer to "TERMINALS OF ECU " .
1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the disc player and the component shown by the sub-code
  1. Disconnect all connectors between the disc player and the component shown by sub-code.
  2. Check for an open or short in the AVC-LAN circuit between the disc player and the component shown by the sub-code.
    OK: There is no open or short circuit.

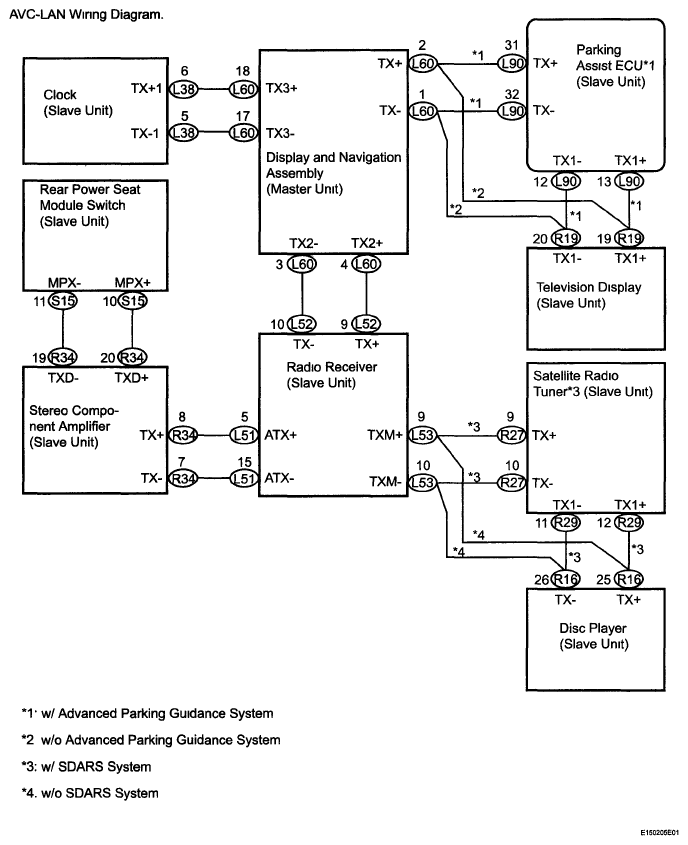

    Fig 3: AVC-LAN - Wiring Diagram
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step
REPLACE COMPONENT SHOWN BY SUB-CODE
1. Replace the component shown by the sub-code with a normal one and check if the same problem occurs again.
  OK: Same problem does not occur.
NG: REPLACE DISC PLAYER ASSEMBLY (See REMOVAL )

OK: END
