VIDEO TERMINAL (for Standard): Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

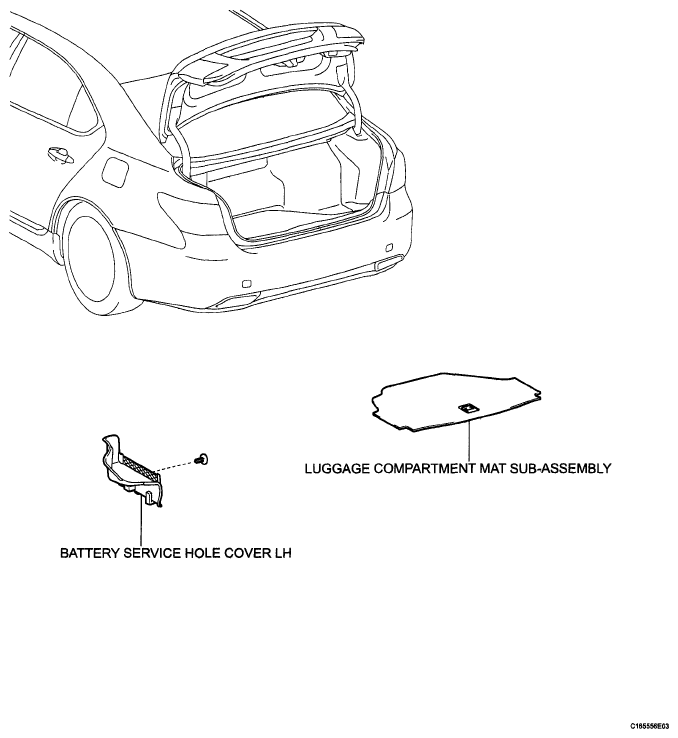

Fig 1: Identifying Video Terminal (For Standard) Components (1 Of 2)
G05783848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

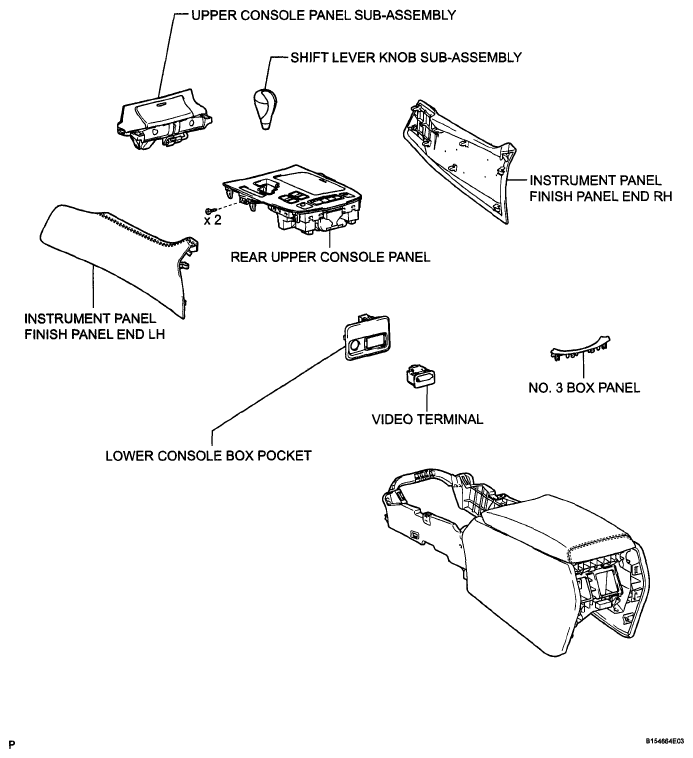

Fig 2: Identifying Video Terminal (For Standard) Components (2 Of 2)
G05783849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
