Television Display: Removal

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (See REMOVAL )
REMOVE BATTERY SERVICE HOLE COVER LH (See REMOVAL )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
- After the power switch is turned OFF, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the power switch OFF, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
REMOVE SPOT LIGHT LENS
1. Detach the 4 claws and remove the lens.

  Fig 1: Identifying Claws And Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF CONSOLE BOX ASSEMBLY
1. Remove the 2 screws.
2. Detach the 6 clips and 2 claws.
3. w/o Infrared Rays Sensor:
  Disconnect the connector and remove the roof console box.
4. w/ Infrared Rays Sensor:
  Disconnect the 2 connectors and remove the roof console box.

  Fig 2: Identifying Roof Console Box Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TELEVISION DISPLAY ASSEMBLY
1. Disconnect the connectors.
2. Remove the 5 nuts.

  Fig 3: Locating Nuts And Television Display Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Detach the 3 claws and remove the television display.

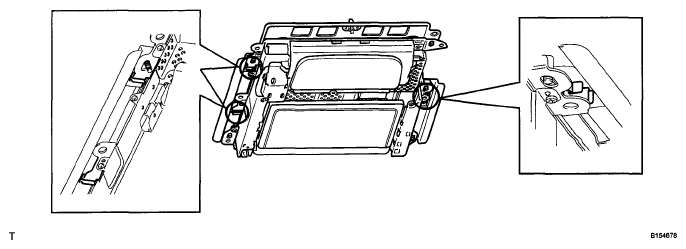

  Fig 4: Identifying Claws And Television Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TELEVISION DISPLAY BRACKET
1. Remove the 4 bolts.
2. Detach the clip and move the bracket in the direction indicated by arrow A Then detach the claw to remove the bracket
  NOTE: Do not reuse the removed clip.

  Fig 5: Removing Television Display Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
