Rear Package Tray Speaker: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

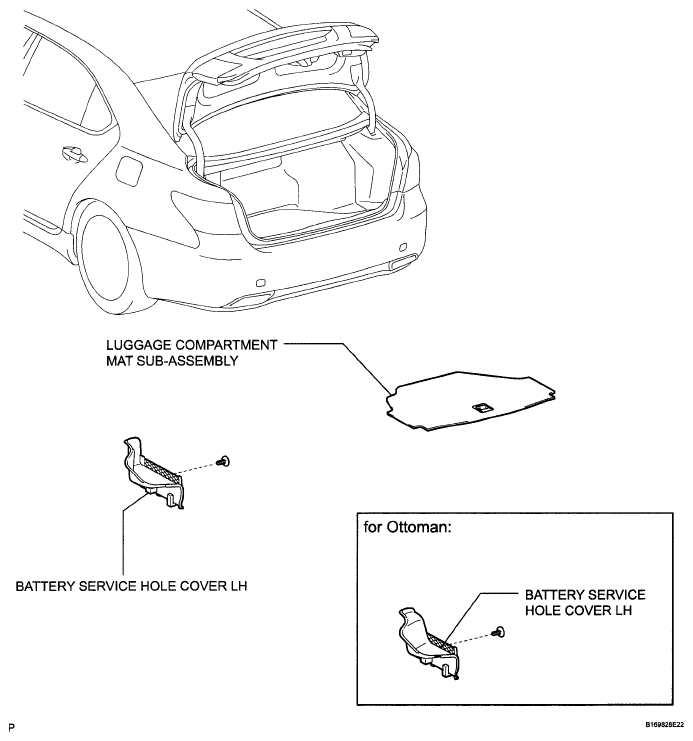

Fig 1: Identifying Rear Package Tray Speaker Components (1 Of 2)
G05783791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

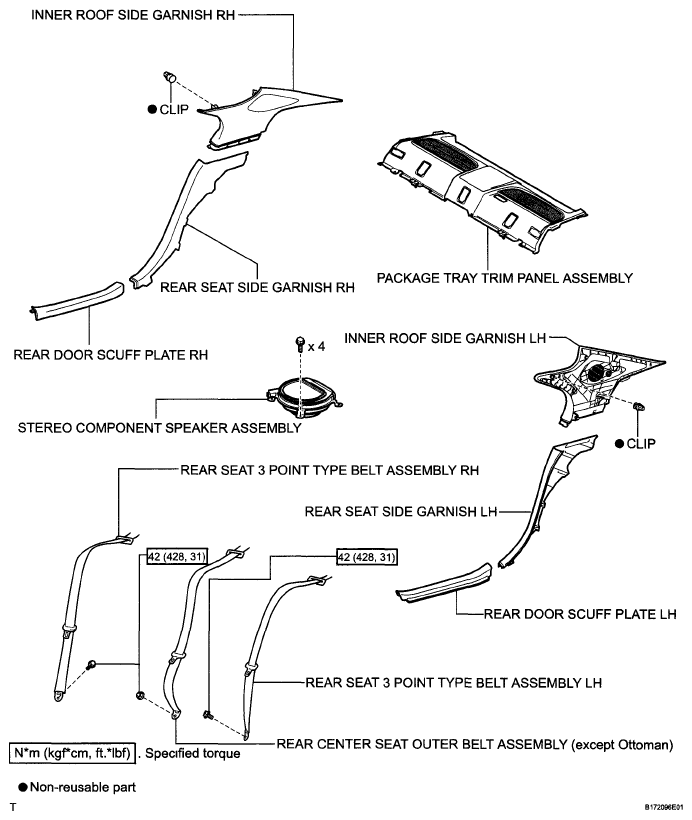

Fig 2: Rear Package Tray Speaker Replacement Components With Torque Specifications (2 Of 2)
G05783792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
