Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When using the Intelligent tester or Techstream with the power switch OFF to troubleshoot:
Connect the Intelligent tester or Techstream to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the tester and vehicle begins.

HINT:

When DTC U1127, U1128 and U1129 are output simultaneously, perform troubleshooting for "Driver Side Switch Module LIN Communication Malfunction" first (see DRIVER SIDE SWITCH MODULE LIN COMMUNICATION MALFUNCTION )

  1. CLEAR DTC
    1. Clear the DTC (see DTC CHECK / CLEAR )
  2. CHECK FOR DTC
    1. Recheck for DTC (see DTC CHECK / CLEAR )

    Result:

    RESULT REFERENCE

    Result Proceed to
    DTC U1127 output reoccurs A
    DTC U1127 output does not reoccur B

    B: USE SIMULATION METHOD TO CHECK  (See HOW TO PROCEED WITH TROUBLESHOOTING )

    A: Go to next step

  3. CHECK HARNESS AND CONNECTOR (OUTER MIRROR SWITCH - NO. 1 CONSOLE SWITCH)

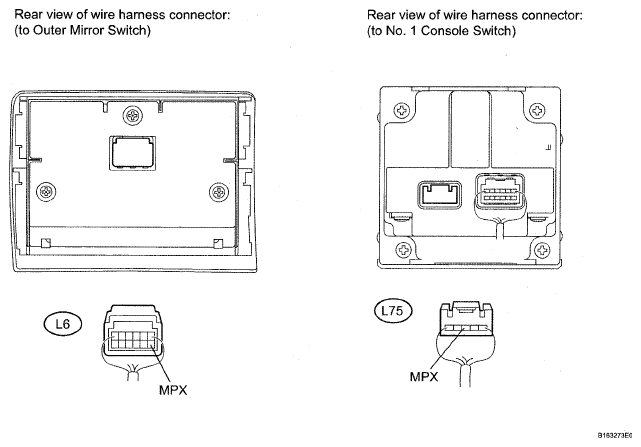

    Fig 1: Identifying L6 And L75 Switch Connector Terminals
    G04947007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L6 and L75 switch connectors.
    2. Measure the resistance and voltage according to the value(s) in the table below.

    Standard resistance

    RESISTANCE REFERENCE

    Tester Connection Condition Specified Condition
    L6-7 (MPX) - L75-3 (MPX) Always Below 1 Ω
    L6-7 (MPX) or L75-3 (MPX) - Body ground Always 10 kΩ or higher

    Standard voltage

    VOLTAGE SPECIFICATION

    Tester Connection Condition Specified Condition
    L6-7 (MPX) or L75-3 (MPX) - Body ground Always Below 1 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (NO. 1 CONSOLE SWITCH - BATTERY AND BODY GROUND)
    1. Disconnect the L75 switch connector
    2. Measure the resistance and voltage according to the value(s) in the table below

    Standard resistance

    RESISTANCE REFERENCE

    Tester Connection Condition Specified Condition
    L75-5 (E) - Body ground Always Below 1 Ω

    Standard voltage

    VOLTAGE SPECIFICATION

    Tester Connection Condition Specified Condition
    L75-1 (B) - Body ground Always 11 to 14 V
    Fig 2: Identifying No. 1 Console Switch L75 Connector Terminals
    G04947008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK NO. 1 CONSOLE SWITCH (OPERATION)
    1. Temporarily replace the No 1 console switch with a new or normally functioning one
    2. Clear the DTC (see DTC CHECK / CLEAR )
  6. CHECK FOR DTC
    1. Recheck for DTC (see DTC CHECK / CLEAR )

    Result:

    RESULT REFERENCE

    Result Proceed to
    DTC U1127 output does not reoccur A
    DTC U1127 output reoccurs B

    B: REPLACE OUTER MIRROR SWITCH  (See REMOVAL )

    A: END (NO. 1 CONSOLE SWITCH IS DEFECTIVE)
