Rear Axle Hub: Removal

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

HINT

  1. REMOVE REAR WHEEL
  2. REMOVE LOAD SENSING VALVE SENSOR BRACKET
    1. Remove the bolt and load sensing valve sensor bracket from the toe control
      Fig 1: Locating Load Sensing Valve Sensor Bracket Bolt
      G04944057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECT REAR STABILIZER LINK ASSEMBLY LH
    1. Remove the bolt and nut, and then disconnect the rear stabilizer link from the rear No. 2 suspension arm.
      Fig 2: Identifying Rear Stabilizer Link From Rear No. 2 Suspension Arm
      G04949531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR AXLE SHAFT NUT LH
    1. Using SST and a hammer, release the staked part of the rear axle shaft nut

      SST 09930-00010

      NOTE: Release the staked part of the nut completely, otherwise the screw of the drive shaft may be damaged.
      Fig 3: Staking Rear Axle Shaft Nut
      G04944059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. While applying the brakes, remove the rear axle shaft nut
  5. DISCONNECT REAR DISC BRAKE CALIPER ASSEMBLY LH
    1. Remove the 2 bolts and separate the rear disc brake caliper
      NOTE:
      • Hang the caliper with wire or equivalent.
      • Do not damage the brake flexible hose.
        • Fig 4: Locating Rear Disc Brake Caliper Bolts
        G04944060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT REAR SPEED SENSOR LH  (See REMOVAL )
  7. REMOVE REAR DISC  (See REMOVAL )
  8. REMOVE NO. 2 PARKING BRAKE SHOE RETURN TENSION SPRING  (See DISASSEMBLY )
  9. REMOVE NO. 1 PARKING BRAKE SHOE RETURN TENSION SPRING  (See DISASSEMBLY )
  10. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET LH  (See DISASSEMBLY )
  11. REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY LH  (See DISASSEMBLY )
  12. REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY LH  (See DISASSEMBLY )
  13. REMOVE PARKING BRAKE SHOE LEVER LH  (See DISASSEMBLY )
  14. DISCONNECT PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY LH  (See REMOVAL )
  15. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
    1. Using a plastic-faced hammer or equivalent, strike the part labeled A from the rear of the vehicle to maintain the clearance at the slide pin area
      Fig 5: Tapping Rear No. 2 Suspension Arm
      G04949505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut, washer, bolt and No 2 suspension arm from the axle carrier.
      Fig 6: Locating Rear No. 2 Suspension Arm Nut
      G04949506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut, rear suspension attachment, and rear No. 2 suspension toe adjust plate Then remove the rear No 2 suspension arm
  16. DISCONNECT REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
    1. Remove the nut from the rear No 1 suspension arm
      2. Fig 7: Locating Rear No 1 Suspension Arm Nut
      G04949507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install 2 spacers (SST spacer B) onto the rear No. 1 suspension arm so that there is a space of approximately 1 mm (0.0394 in) between the arm and spacers

      SST 09960-20010 (09961-02060)

      NOTE:
      • Make sure to install the spacers (SST spacer B) as the steering knuckle spacer may shift.
      • As SST may become damaged, make sure the space between the arm and spacers is not less than 1 mm (0.0394 in.).
      Fig 8: Identifying Spacers (SST Spacer) Onto Rear No. 1 Suspension Arm
      G05781773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, disconnect the rear No. 1 suspension arm from the axle carrier.

      SST 09960-20010 (09961-02010)

      NOTE:
      • Do not damage the ball joint dust cover.
      • As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
      • Make sure to tie the string of SST to the vehicle to prevent SST from dropping.
  17. DISCONNECT TOE CONTROL LINK SUB-ASSEMBLY LH
    1. Remove the nut on the rear axle carrier side.
    2. Install 2 spacers (SST spacer B) onto the toe control link so that there is a space of approximately 1 mm (0.0394 in.) between the arm and spacers

      SST 09960-20010 (09961-02060)

      NOTE:
      • Make sure to install the spacers (SST spacer B) as the steering knuckle spacer may shift.
      • As SST may become damaged, make sure the space between the arm and spacers is not less than 1 mm (0.0394 in.).

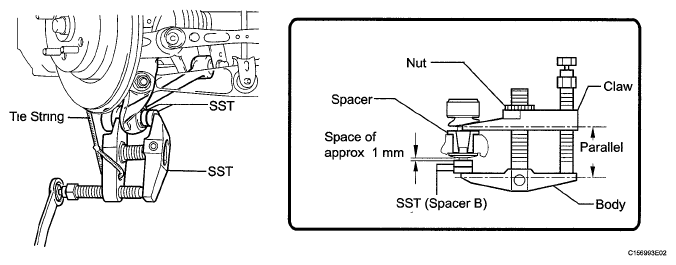

      Fig 9: Identifying Spacers (SST Spacer B) Onto Toe Control Link
      G05781786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, disconnect the toe control link from the axle carrier.

      SST 09960-20010 (09961 -02010)

      NOTE:
      • Do not damage the ball joint dust cover.
      • As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
      • Make sure to tie the string of SST to the vehicle to prevent SST from dropping.
  18. DISCONNECT REAR UPPER NO. 1 CONTROL ARM ASSEMBLY LH
    1. Remove the nut on the rear axle carrier side.
    2. Install 2 spacers (SST spacer A) onto the rear upper No. 1 control arm so that there is a space of approximately 1 mm (0 0394 in.) between the arm and spacers.

      SST 09960-20010 (09961-02050)

      NOTE:
      • Make sure to install the spacers (SST spacer A) as the steering knuckle spacer may shift.
      • As SST may become damaged, make sure the space between the arm and spacers is not less than 1 mm (0.0394 in.).

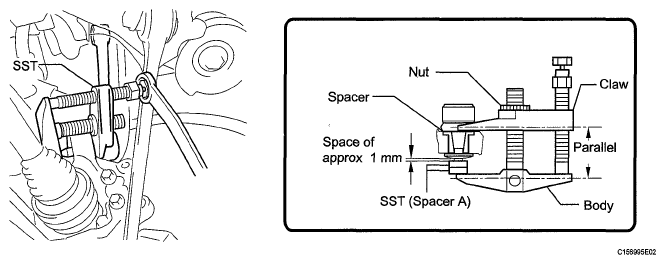

      Fig 10: Identifying Spacers (SST Spacer A) Onto Rear Upper No. 1 Control Arm
      G05781754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, disconnect the upper No 1 control arm from the axle carrier

      SST 09960-20010 (09961 -02010)

      NOTE:
      • Do not damage the ball joint dust cover.
      • As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
      • Make sure to tie the string of SST to the vehicle to prevent SST from dropping.
  19. DISCONNECT REAR UPPER NO. 2 CONTROL ARM ASSEMBLY LH
    1. Remove the nut on the rear axle carrier side.
    2. Install 2 spacers (SST spacer A) onto the rear upper No. 2 control arm so that there is a space of approximately 1 mm (0.0394 in) between the arm and spacers

      SST 09960-20010 (09961-02050)

      NOTE:
      • Make sure to install the spacers (SST spacer A) as the steering knuckle spacer may shift.
      • As SST may become damaged, make sure the space between the arm and spacers is not less than 1 mm (0.0394 in.).

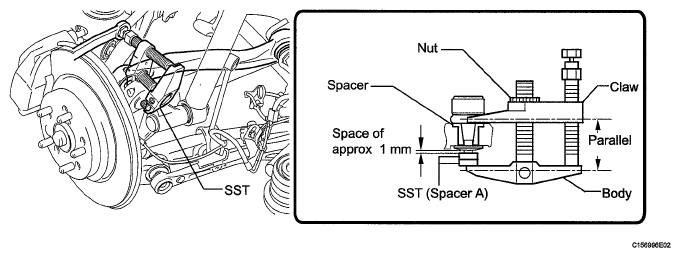

      Fig 11: Identifying Spacers (SST Spacer A) Onto Rear Upper No. 2 Control Arm
      G05781756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, disconnect the upper No. 2 control arm from the axle carrier.

      SST 09960-20010 (09961-02010)

      NOTE:
      • Do not damage the ball joint dust cover.
      • As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
      • Make sure to tie the string of SST to the vehicle to prevent SST from dropping.
  20. REMOVE REAR AXLE ASSEMBLY LH
    1. Using a plastic-faced hammer, separate the drive shaft from the rear axle carrier.
    2. Remove the rear axle
      NOTE:
      • Be careful not to damage the boots.
      • Use a wire or equivalent to keep the drive shaft from hanging down.
  21. REMOVE REAR NO. 1 WHEEL BEARING DUST DEFLECTOR LH
    1. Using a screwdriver, remove the bearing dust deflector from the rear axle carrier
      NOTE: Be careful not to dent or damage the axle carrier, as it is made of aluminum.
      Fig 12: Removing Bearing Dust Deflector
      G04944068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY LH
    1. Hold the axle hub and bearing in a vise between aluminum plates.
      NOTE: Do not overtighten the vise.
    2. Remove the 4 bolts and axle hub and bearing from the rear axle carrier.
      Fig 13: Locating Axle Hub Bolts
      G04944069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 nuts, parking brake anchor block, parking brake cable support bracket, and parking brake plate from the rear axle carrier.
      4. Fig 14: Locating Parking Brake Anchor Block With Nuts
      G04950030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
