Front Passenger Side Power Mirror cannot be Adjusted with Power Mirror Switch: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

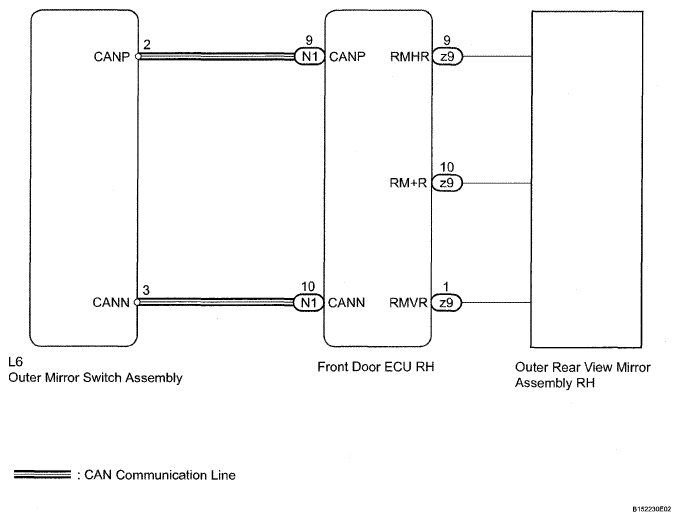

Fig 1: Outer Mirror Switch Assembly And Front Door ECU - Wiring Diagram
G04952273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
