Brake Pedal Support: Disassembly

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE STOP LIGHT SWITCH ASSEMBLY
    1. Loosen the lock nut, and then remove the stop light switch.
      Fig 1: Locating Stop Light Switch Lock Nut
      G04949835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE BRAKE PEDAL PAD
    1. Remove the brake pedal pad from the brake pedal.
      2. Fig 2: Removing Brake Pedal Pad From Brake Pedal
      G04949836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY  (See INSPECTION )
  4. REMOVE BRAKE PEDAL SUPPORT SUB-ASSEMBLY
    1. Remove the nut, hexagon bolt and brake pedal support.

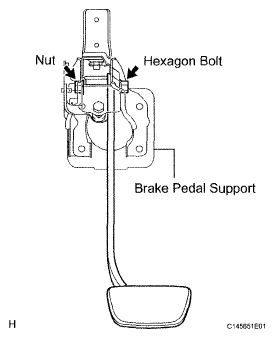

      Fig 3: Locating Hexagon Bolt And Brake Pedal Support
      G04949837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the cushion from the brake pedal.
      3. Fig 4: Locating Cushion From Brake Pedal
      G04949838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
