Rear Sunshade Assembly: Inspection
WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT REAR SUNSHADE ASSEMBLY

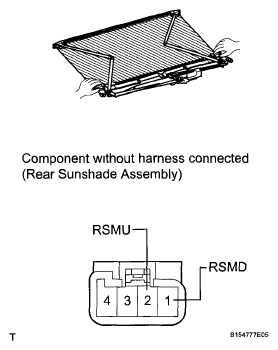

- Hold the edges of the rear sunshade with your hands, as shown in the illustration
- Apply battery voltage to the rear sunshade motor and check the operation of the rear sunshade
OK
VOLTAGE SPECIFICATIONMeasurement Condition Specified Condition Battery positive (+) → terminal 2 (RSMU)
Battery negative (-) → terminal 1 (RSMD)Rear sunshade rises Battery positive (+) → terminal 1 (RSMD)
Battery negative (-) -* terminal 2 (RSMU)Rear sunshade lowers HINT:
To prevent the motor from burning out, stop operation as soon as the rear sunshade is fully raised or lowered
CAUTION: Be careful when the rear sunshade rises and lowers. Something could get caught in the rear sunshade and cause an injury.If the result is not as specified, replace the rear sunshade assembly
- INSPECT CURTAIN SWITCH ASSEMBLY
- for Fixed Seat Type
Remove the curtain switch assembly (see REMOVAL )
- for Power Seat
Remove the curtain switch assembly (see REMOVAL )

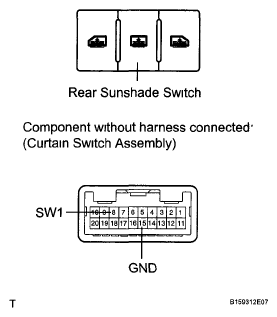

- Measure the resistance according to the value (s) in the table below
Standard resistance
RESISTANCE REFERENCETester Connection Switch Condition Specified Condition 8 (SW1) -15 (GND) Rear Sunshade Switch ON Below 200 Ω If the result is not as specified, replace the curtain switch.
- for Fixed Seat Type
- INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY
- Remove the integration control and panel assembly (see REMOVAL )
- Measure the resistance according to the value (s) in the table below
Standard resistance
RESISTANCE REFERENCETester Connection Switch Condition Specified Condition 8-12 Rear sunshade switch is pushed Below 200 Ω 8-12 Rear sunshade switch is not pushed 10 kΩ or higher If the result is not as specified, replace the integration control and panel
