Toe Control Link: Removal

HINT:

• Use the same procedures for the RH side and LH side
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE SKID CONTROL SENSOR WIRE  (See REMOVAL )
3. REMOVE LOAD SENSING VALVE SENSOR BRACKET  (See REMOVAL )
4. REMOVE TOE CONTROL LINK SUB-ASSEMBLY LH

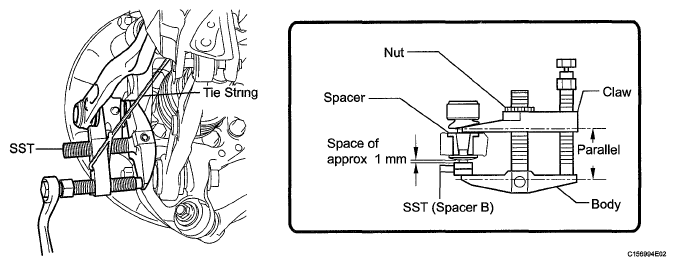

   Fig 1: Identifying Toe Control Link From Axle Carrier With SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Remove the nut on the rear axle carrier side.
   2. Install 2 spacers (SST spacer B) onto the toe control link so that there is a space of approximately 1 mm (0.0394 in) between the arm and spacers.

      SST 09960-20010(09961-02060)

      NOTE:

      • Make sure to install the spacers (SST spacer B) as the axle carrier spacer may shift.
      • As SST may become damaged, make sure the space between the arm and spacers is not less than 1 mm (0.0394 in.).
   3. Using SST, disconnect the toe control link from the axle carrier.

      SST 09960-20010 (09961 -02010)

      NOTE:

      • Do not damage the dust cover.
      • As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
      • Make sure to tie the string of SST to the vehicle to prevent SST from dropping.
   4. Place matchmarks on the No 2 suspension toe adjust plate and suspension member.
      Fig 2: Identifying Matchmarks On No 2 Suspension Toe Adjust Plate And Suspension Member

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the nut, No. 2 suspension toe adjust plate, toe adjust cam and toe control link from the suspension member.
