Toe Control Link: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

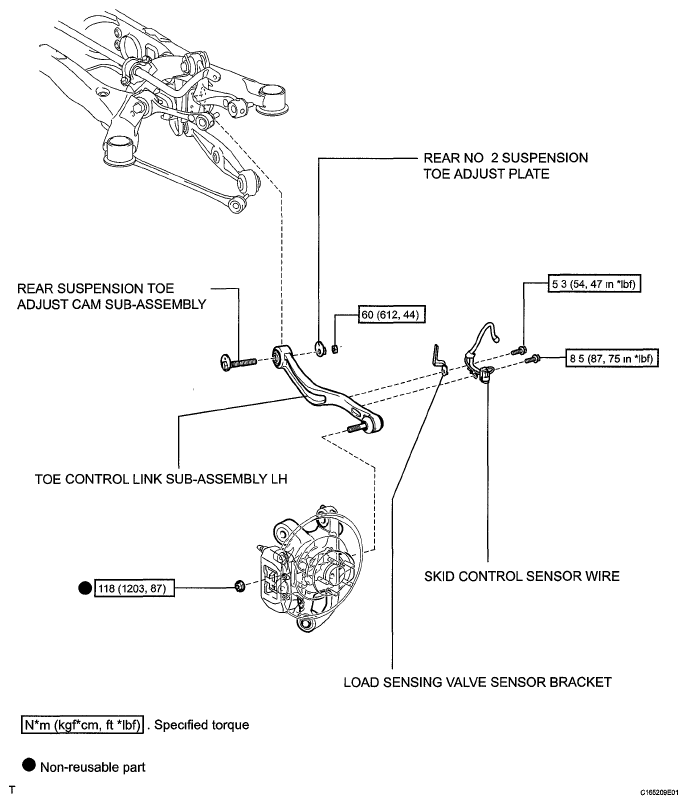

Fig 1: Toe Control Link Replacement Components With Torque Specifications
G05781784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
