Rear Stabilizer Bar: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

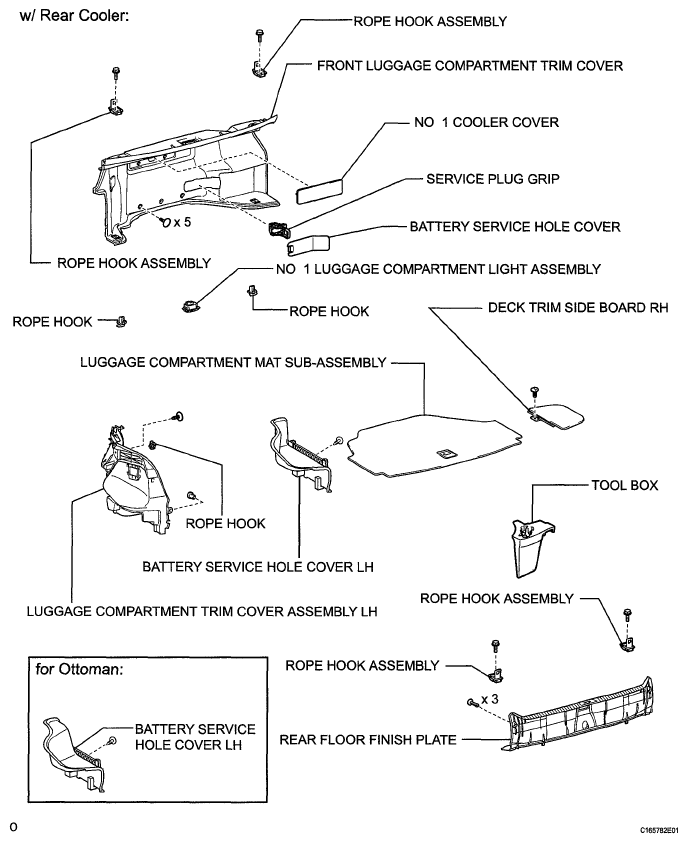

Fig 1: Identifying Rear Stabilizer Bar Components (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

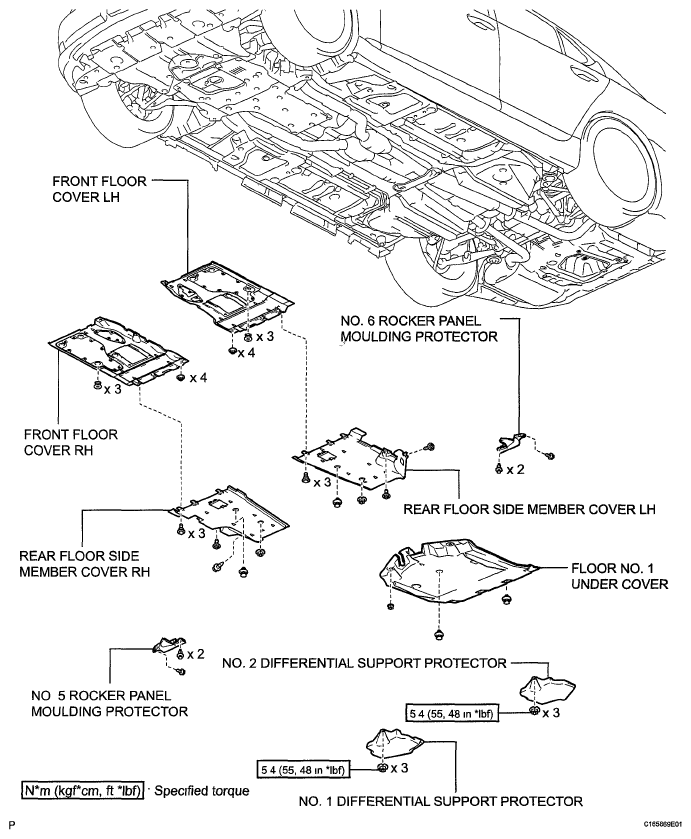

Fig 2: Identifying Rear Stabilizer Bar Components (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

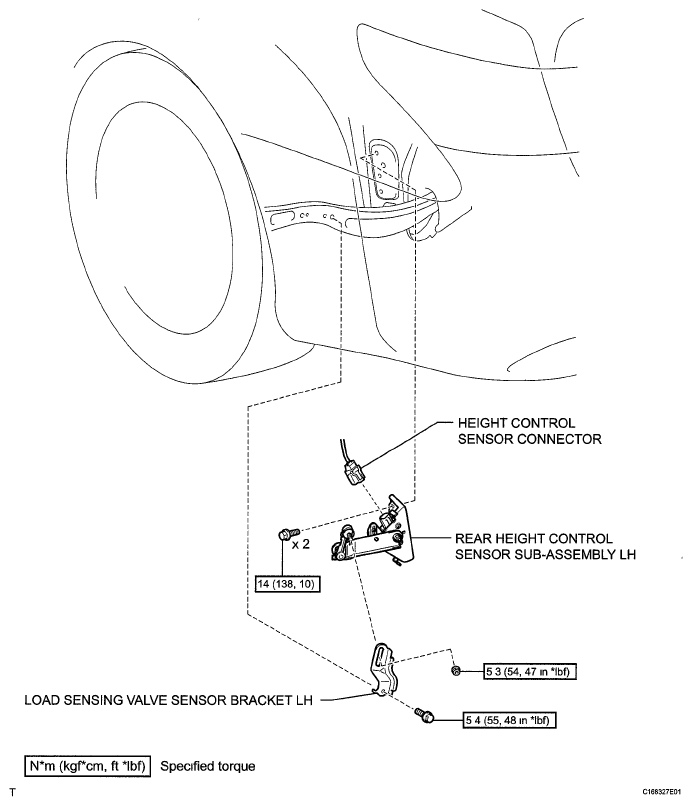

Fig 3: Rear Active Stabilizer Control Actuator Replacement Components With Torque Specifications (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

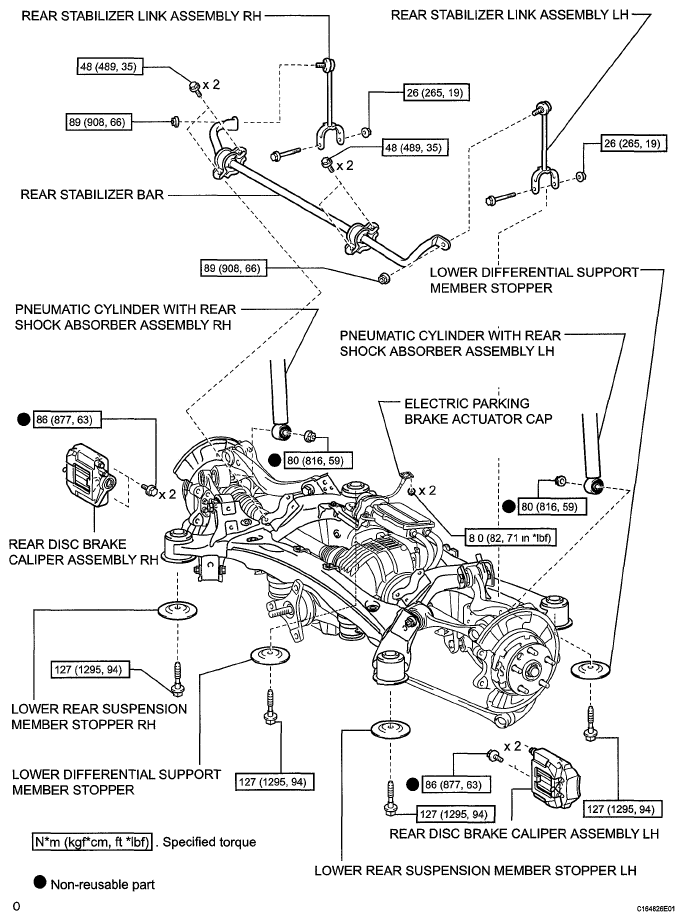

Fig 4: Identifying Rear Stabilizer Bar Components (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

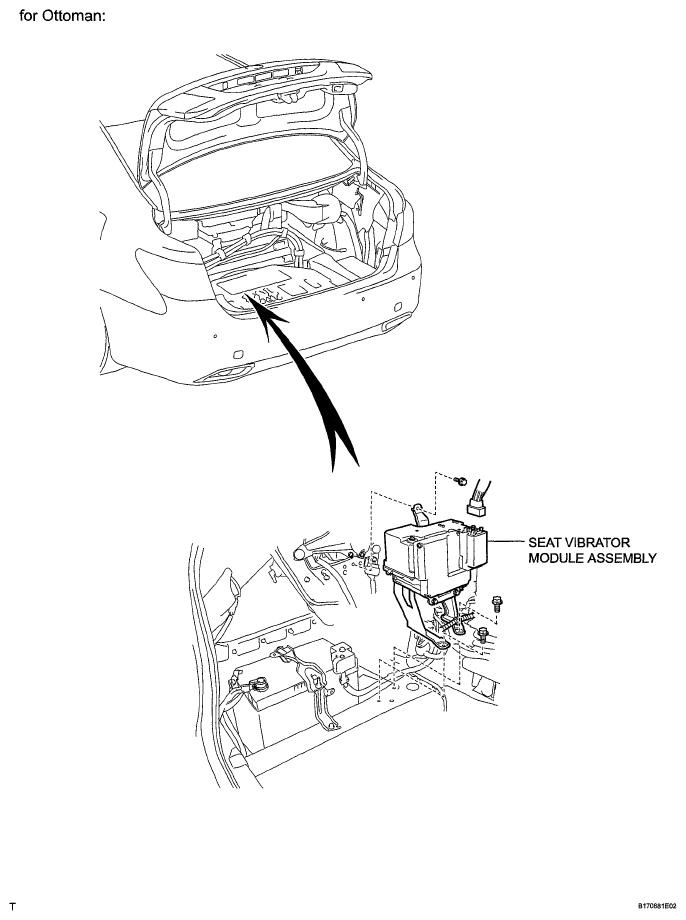

Fig 5: Rear Active Stabilizer Control Actuator Replacement Components With Torque Specifications (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

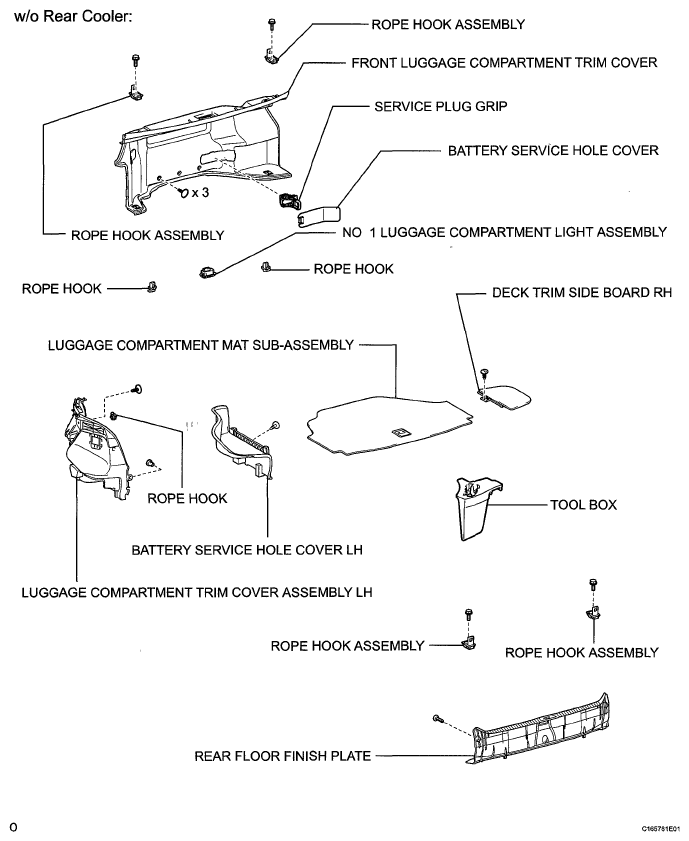

Fig 6: Rear Active Stabilizer Control Actuator Replacement Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Rear Active Stabilizer Control Actuator Replacement Components With Torque Specifications (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Rear Stabilizer Bar Components (8 Of 11)

Fig 9: Front Suspension Member Replacement Components With Torque Specifications (16 Of 20)

Fig 10: Rear Active Stabilizer Control Actuator Replacement Components With Torque Specifications (10 Of 11)

Fig 11: Rear Stabilizer Bar Replacement Components With Torque Specifications (11 Of 11)
