Heated Steering Wheel Controller: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Trunk Trim, Auxiliary Battery & Service Grip
G05782368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

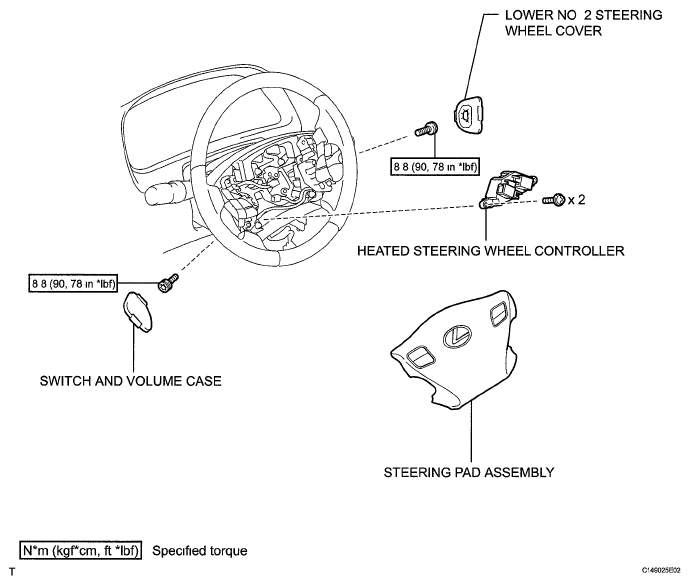

Fig 2: Heated Steering Wheel Controller Replacement Components With Torque Specifications
G05782453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
