Curtain Shield Airbag Assembly: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Curtain Shield Airbag Assembly Components (1 Of 2)
G05775130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

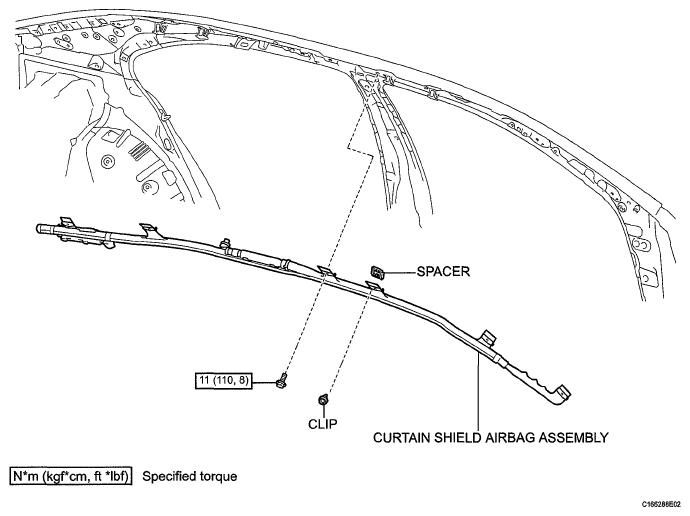

Fig 2: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (2 Of 2)
G05775131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
