Front Wiper Motor: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

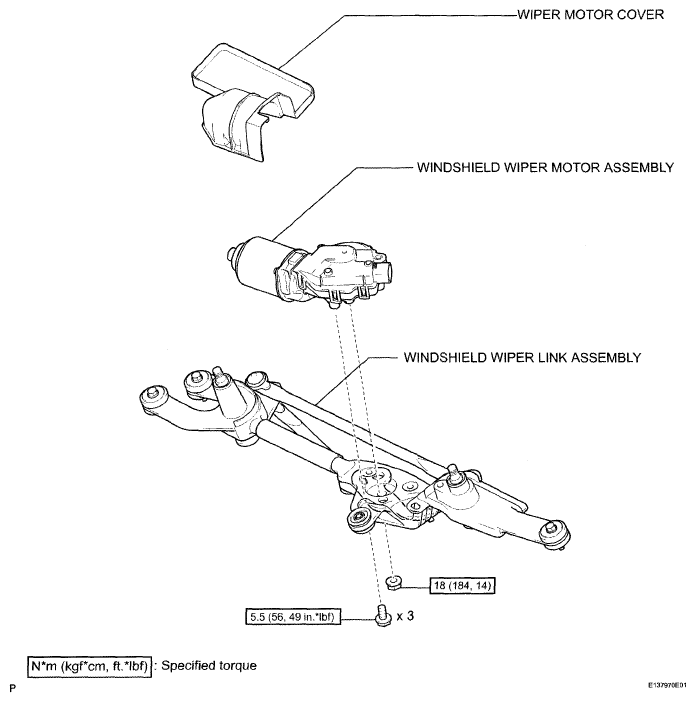

Fig 1: Identifying Front Wiper Motor Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

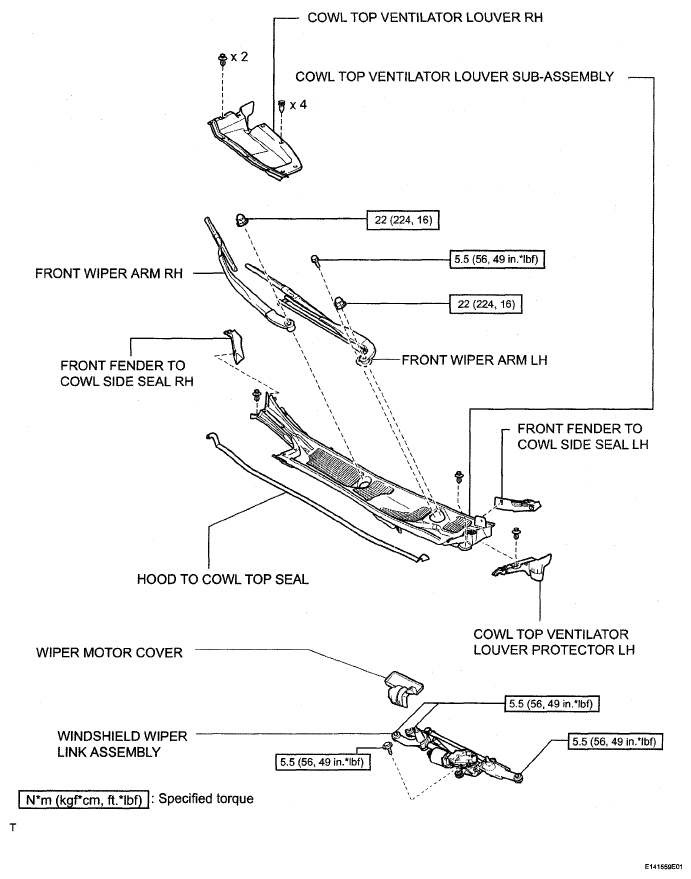

Fig 2: Identifying Front Wiper Motor Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

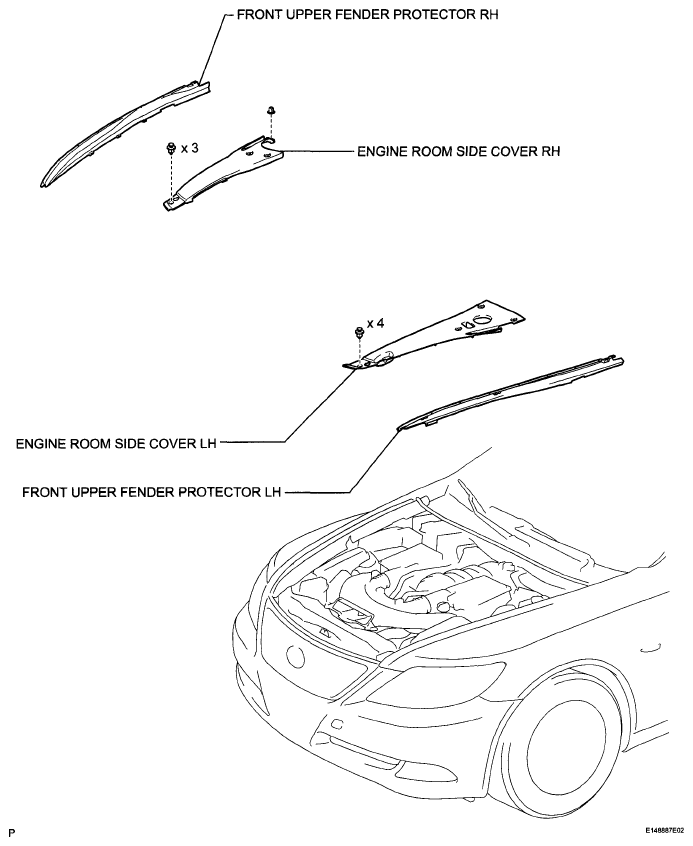

Fig 3: Front Wiper Motor Replacement Components With Torque Specifications (3 Of 4)

Fig 4: Front Wiper Motor Replacement Components With Torque Specifications (4 Of 4)
