Front Evaporator Temperature Sensor: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Front Evaporator Temperature Sensor Components (1 Of 2)
G04950744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

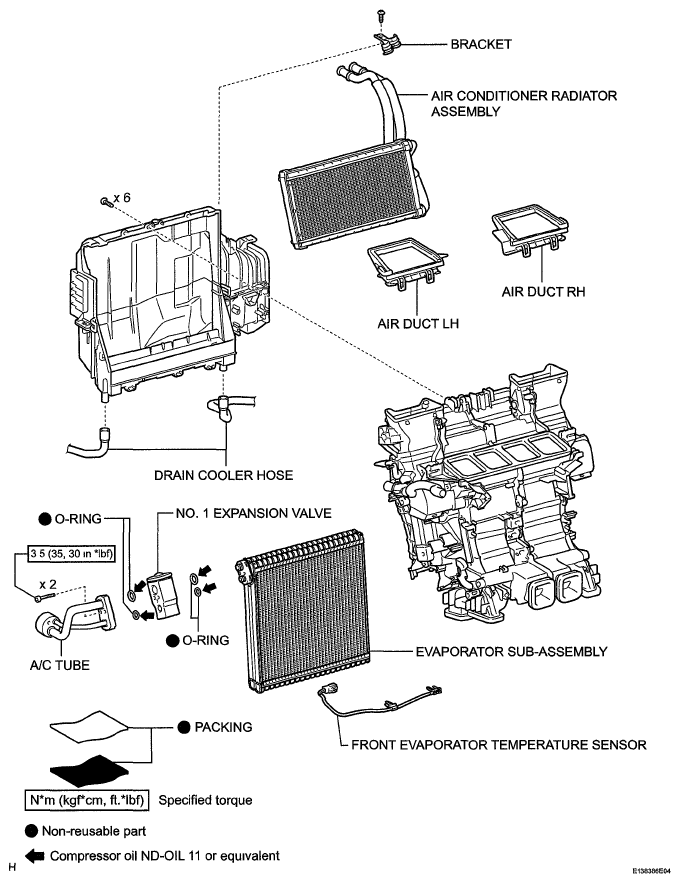

Fig 2: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
G05774644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
