Hydrocarbon ADSORBER Catalyst Actuator: Installation

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The procedures should be performed by at least 2 people.
  • Wear protective gloves when removing the exhaust pipe.

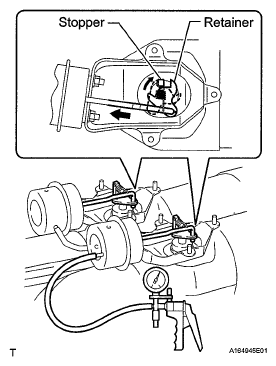

    Fig 1: Inspecting Hydrocarbon Adsorber Catalyst Actuator
    G05773131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  • The exhaust pipe is extremely hot immediately after the engine has stopped.
  • Confirm that the exhaust pipe has cooled down before removing it.

HINT:

When viewed from the rear of the engine assembly, Bank 1 is on the left side and Bank 2 is on the right side.

  1. INSTALL AIR CONTROL SPRING
    1. Install the spring LH and RH as shown in the illustration.
      Fig 2: Installing Air Control Spring
      G05773132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL UPPER NO. 3 EXHAUST PIPE PROTECTOR
    1. Install the protector LH and RH with the 6 nuts

      Torque: 5.2 N*m (53 kgf*cm, 46 in.*lbf)

      Fig 3: Locating Upper No. 3 Exhaust Pipe Protector Vacuum Hoses And Nuts
      G05773128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 vacuum hoses.
  3. INSTALL FRONT EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  4. INSTALL NO. 2 HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)  (See INSTALLATION )
  5. INSTALL EXHAUST GAS TEMPERATURE SENSOR  (See INSTALLATION )
  6. CONNECT EXHAUST PIPE AIR HOSE  (See INSTALLATION )
  7. INSPECT FOR EXHAUST GAS LEAK  (See INSTALLATION )
  8. INSTALL FRONT CENTER FLOOR BRACE  (See INSTALLATION )
  9. INSTALL FRONT CENTER FLOOR COVER  (See INSTALLATION )
  10. INSTALL FRONT FLOOR COVER RH  (See INSTALLATION )
  11. INSTALL FRONT FLOOR COVER LH  (See INSTALLATION )
  12. INSTALL REAR FLOOR SIDE MEMBER COVER RH  (See INSTALLATION )
  13. INSTALL REAR FLOOR SIDE MEMBER COVER LH  (See INSTALLATION )
  14. INSTALL NO. 5 ROCKER PANEL MOULDING PROTECTOR  (See INSTALLATION )
  15. INSTALL NO. 6 ROCKER PANEL MOULDING PROTECTOR  (See INSTALLATION )
  16. INSTALL NO. 1 DIFFERENTIAL SUPPORT PROTECTOR  (See INSTALLATION )
  17. INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR  (See INSTALLATION )
