Cooling Fan Motor: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

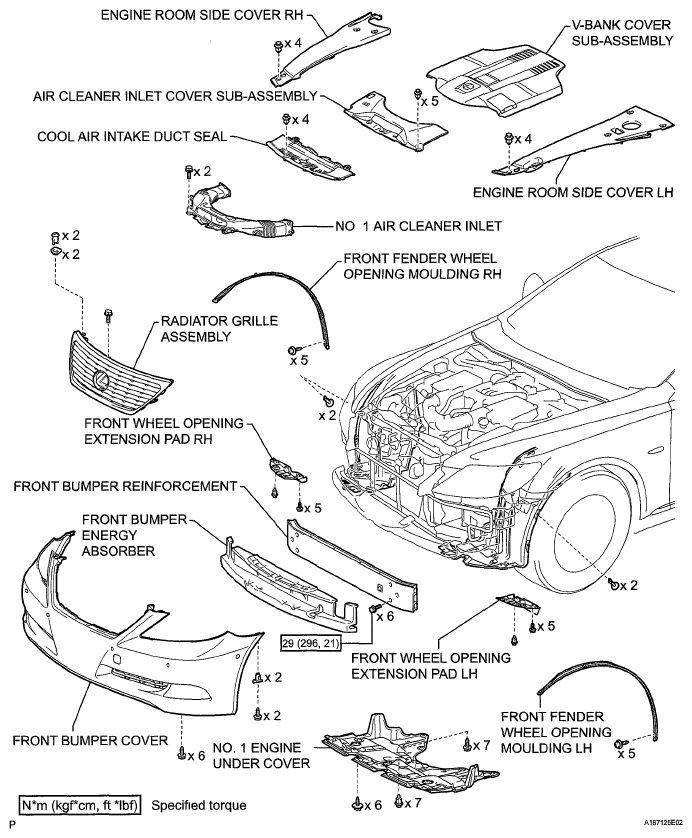

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications (1 Of 3)
G05773349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

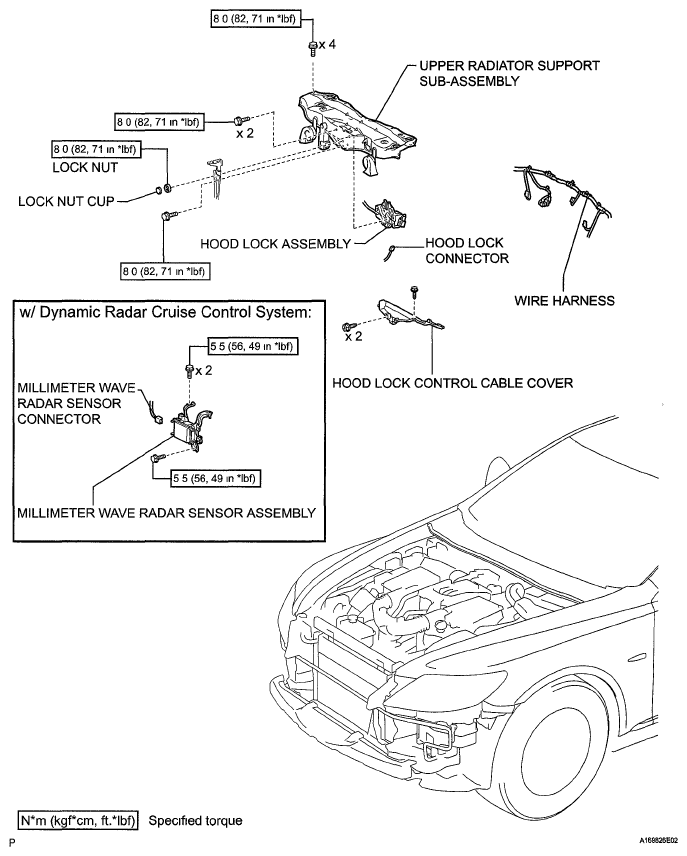

Fig 2: Cooling Fan Motor Replacement Components With Torque Specifications (2 Of 3)
G05773350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

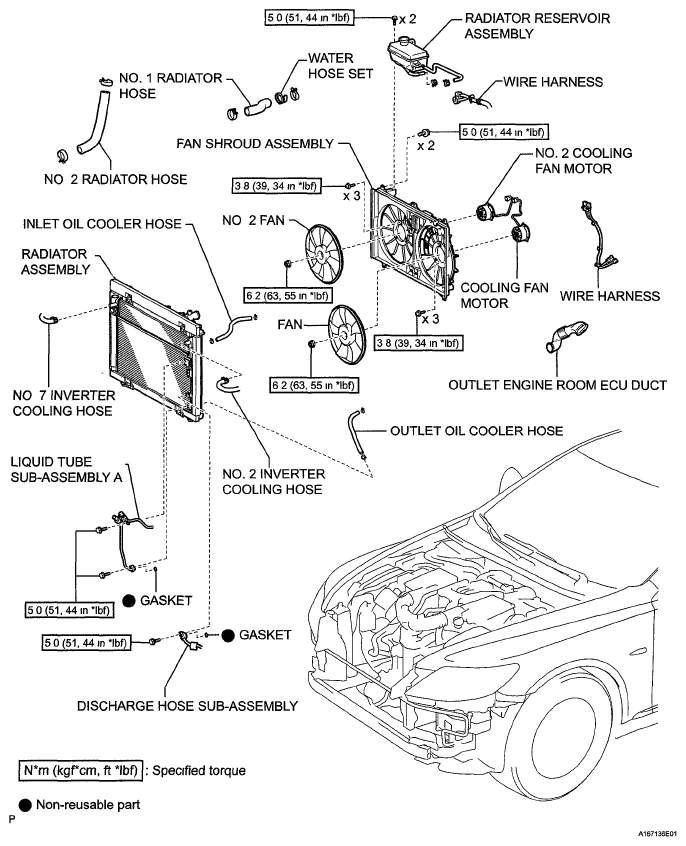

Fig 3: Cooling Fan Motor Replacement Components With Torque Specifications (3 Of 3)
G05773351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
