Drive Belt: Installation: Installation

INSTALL V-RIBBED BELT
1. Install the V-ribbed belt as shown in the illustration.

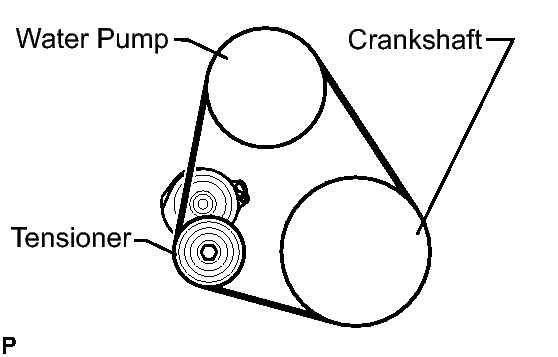

  Fig 1: V-Ribbed Belt Routing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Check that the V-ribbed belt is properly set to each pulley.
2. Rotate the tensioner pulley counterclockwise, and then remove the bar.
3. After installing the belt, check that it fits properly in the ribbed grooves.

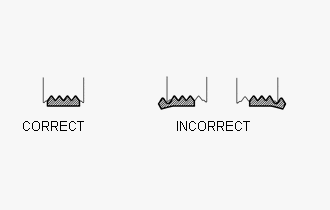

  Fig 2: Identifying Correct And Incorrect Position Of V-Ribbed Belt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check by hand to confirm that the belt has not slipped out of the grooves on the bottom of the pulley.
5. Check that the alignment mark on the belt tensioner is within area "A".

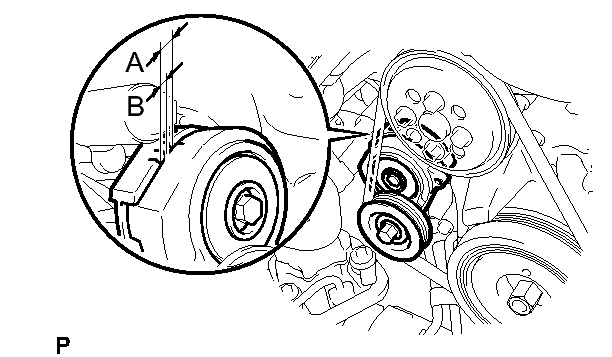

  Fig 3: Identifying V-Ribbed Belt Alignment Mark On Belt Tensioner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If it is outside area "A", replace the V-ribbed belt.

  HINT:

  When a new belt is installed, the alignment mark should be within area "B". If not, the V-ribbed belt is not installed correctly.
INSTALL INTAKE AIR CONNECTOR PIPE . Refer to INSTALLATION - Step 2
INSTALL NO. 1 AIR CLEANER INLET See step 95
INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY See step 96
INSTALL V-BANK COVER SUB-ASSEMBLY See step 97
