Combination Meter: Components: Illustration

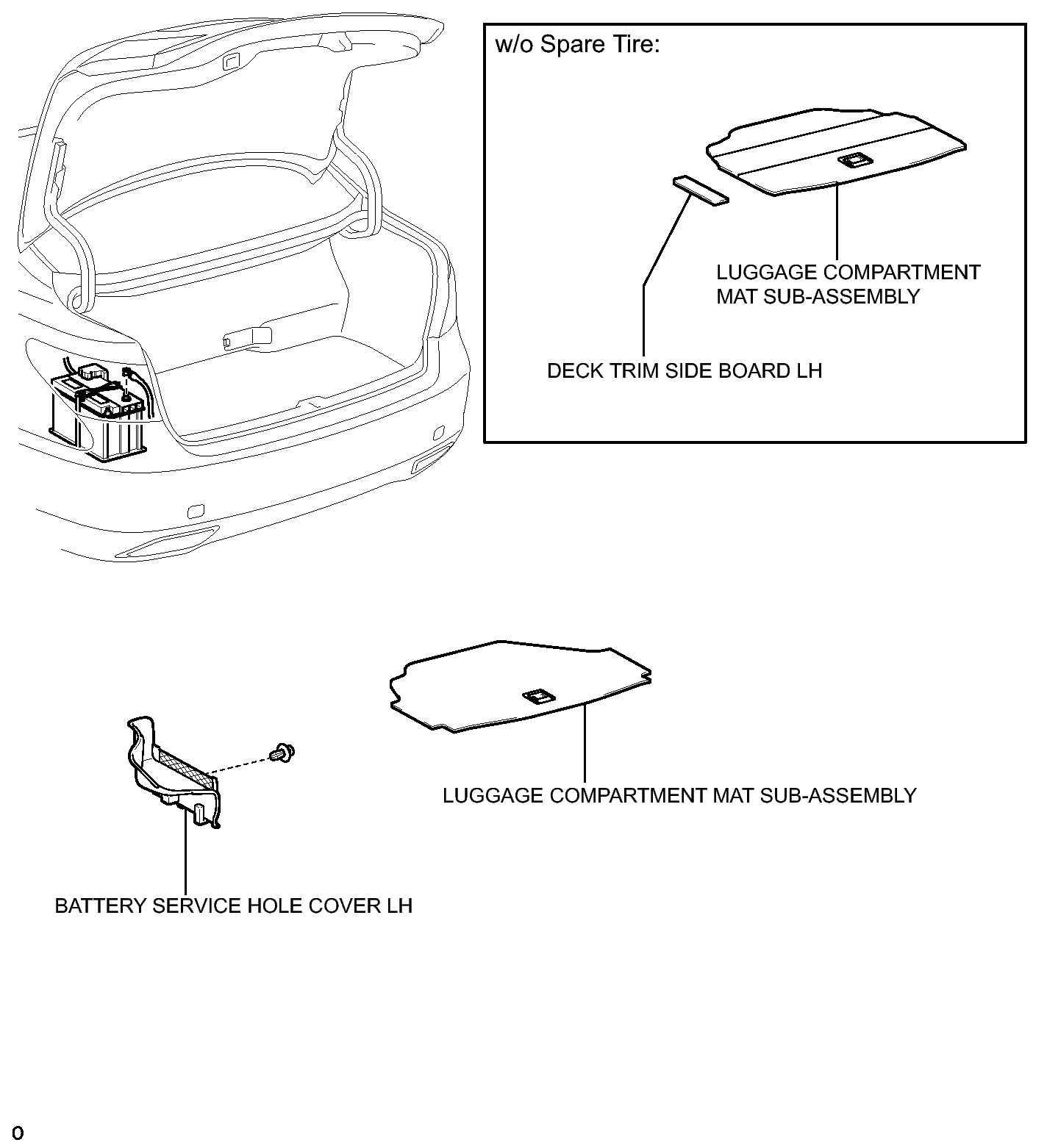

Fig 1: Identifying Combination Meter Replacement Components (1 Of 4)
GTY129738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Combination Meter Replacement Components (2 Of 4)
GTY153126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


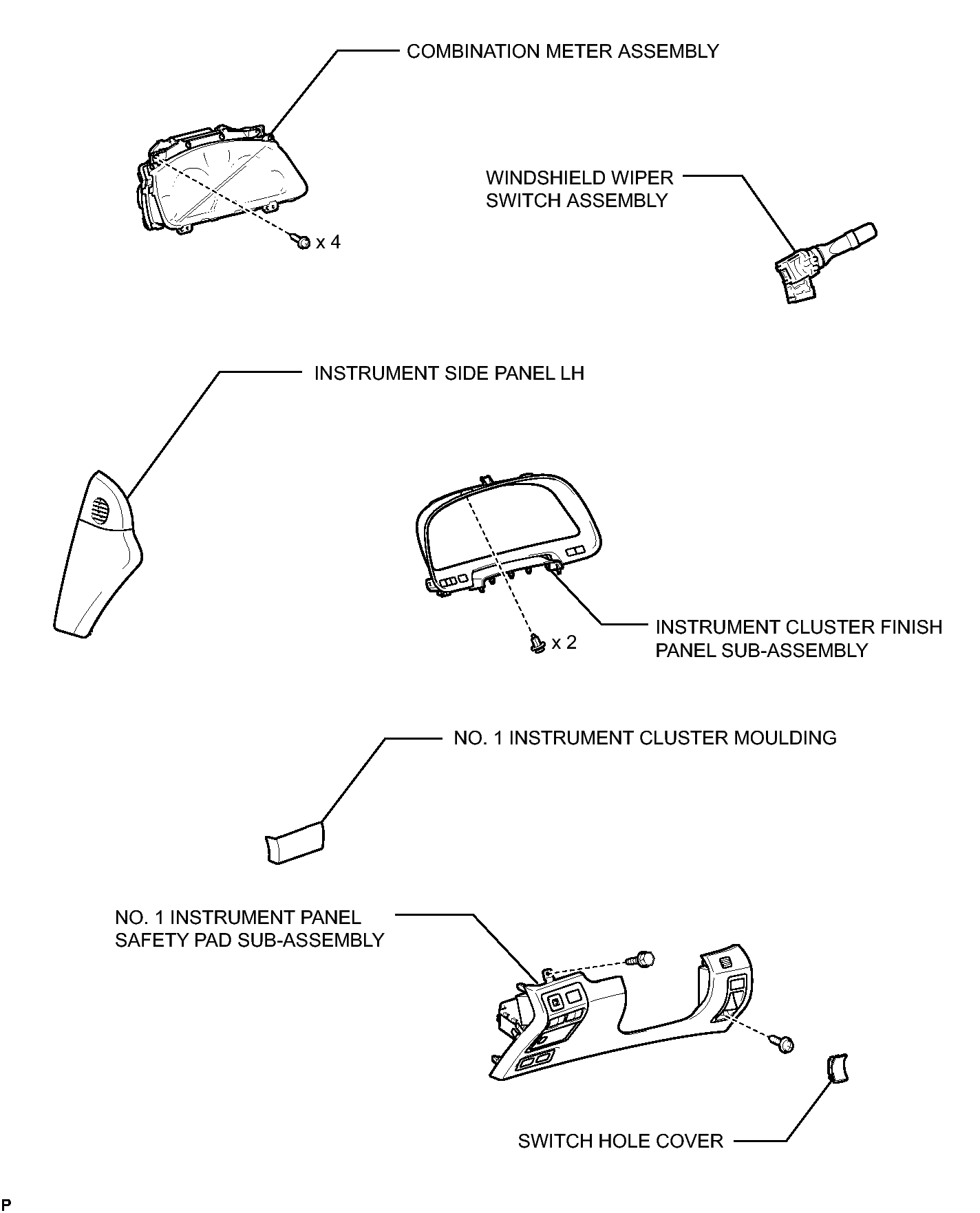

Fig 1: Identifying Combination Meter Replacement Components (3 Of 4)
GTY153127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

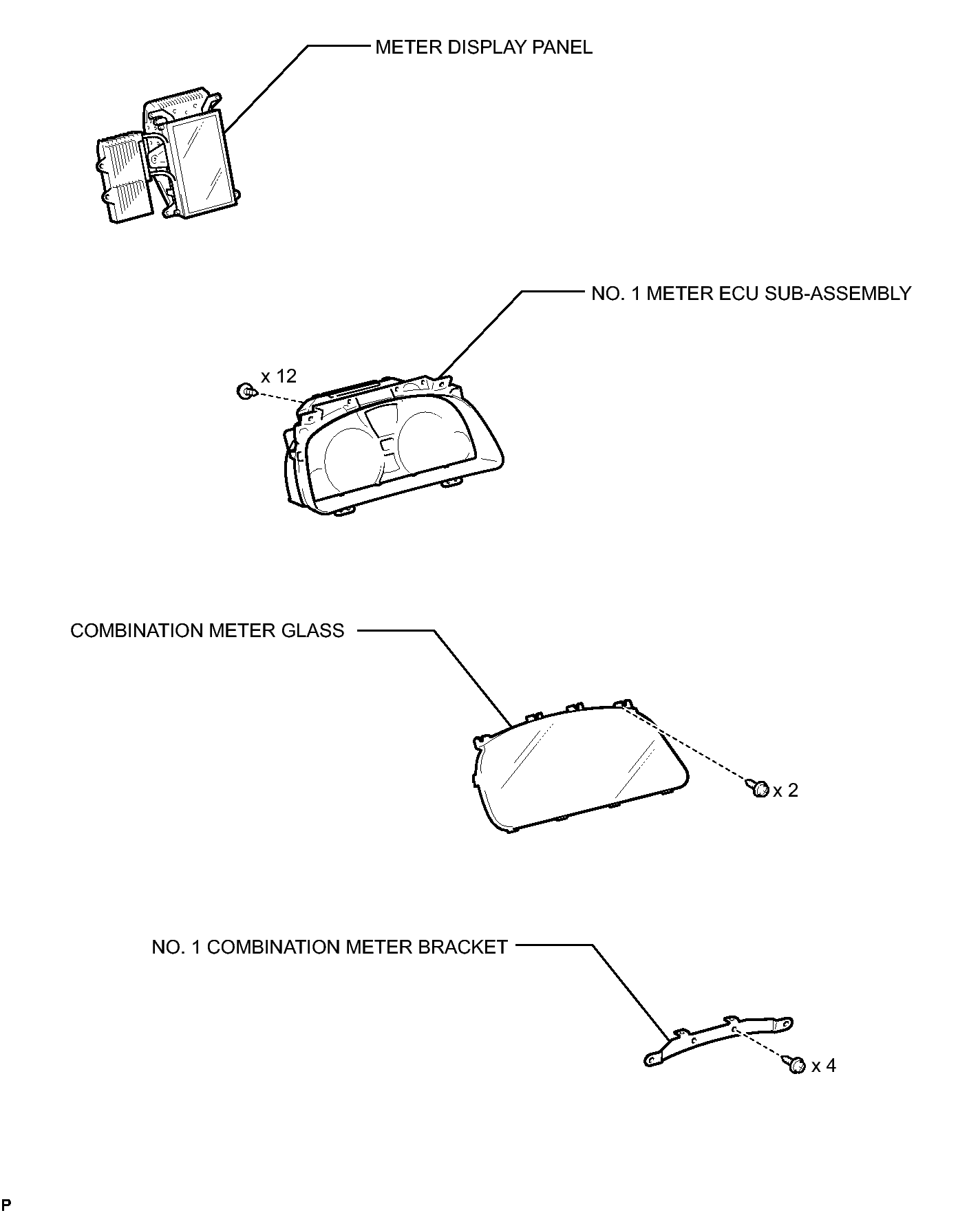

Fig 1: Identifying Combination Meter Replacement Components (4 Of 4)
GTY153250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
