Electric Parking Brake: Notes

Fig 1: Electric Parking Brake - Circuit Diagram (1 Of 6)
G07607142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

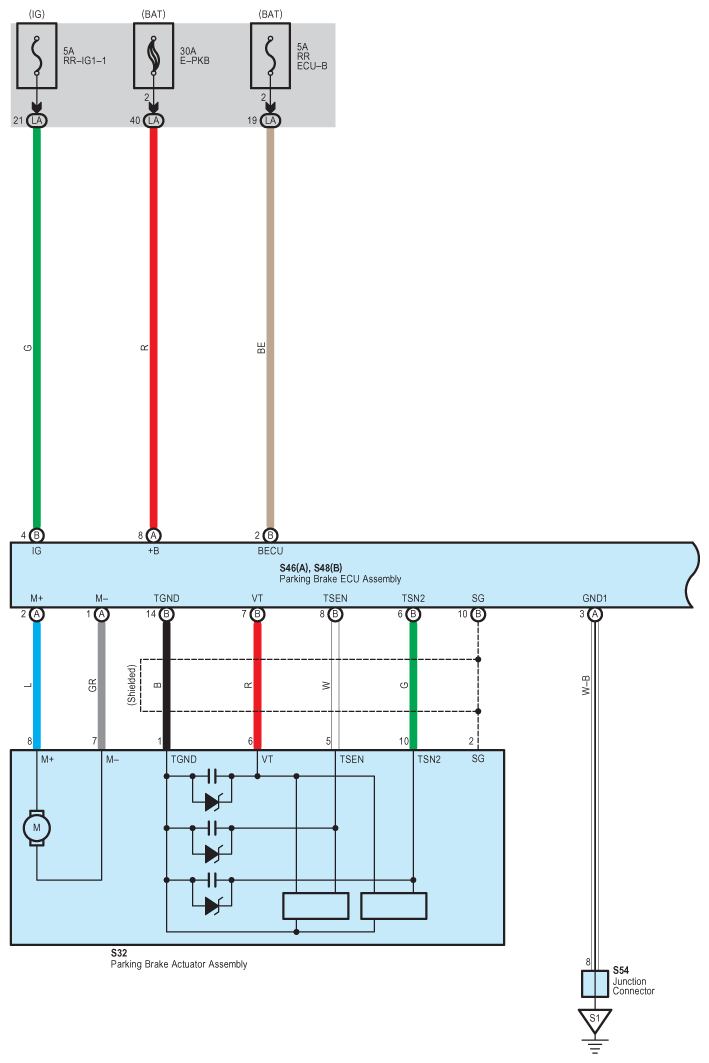

Fig 2: Electric Parking Brake - Circuit Diagram (2 Of 6)
G07607143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

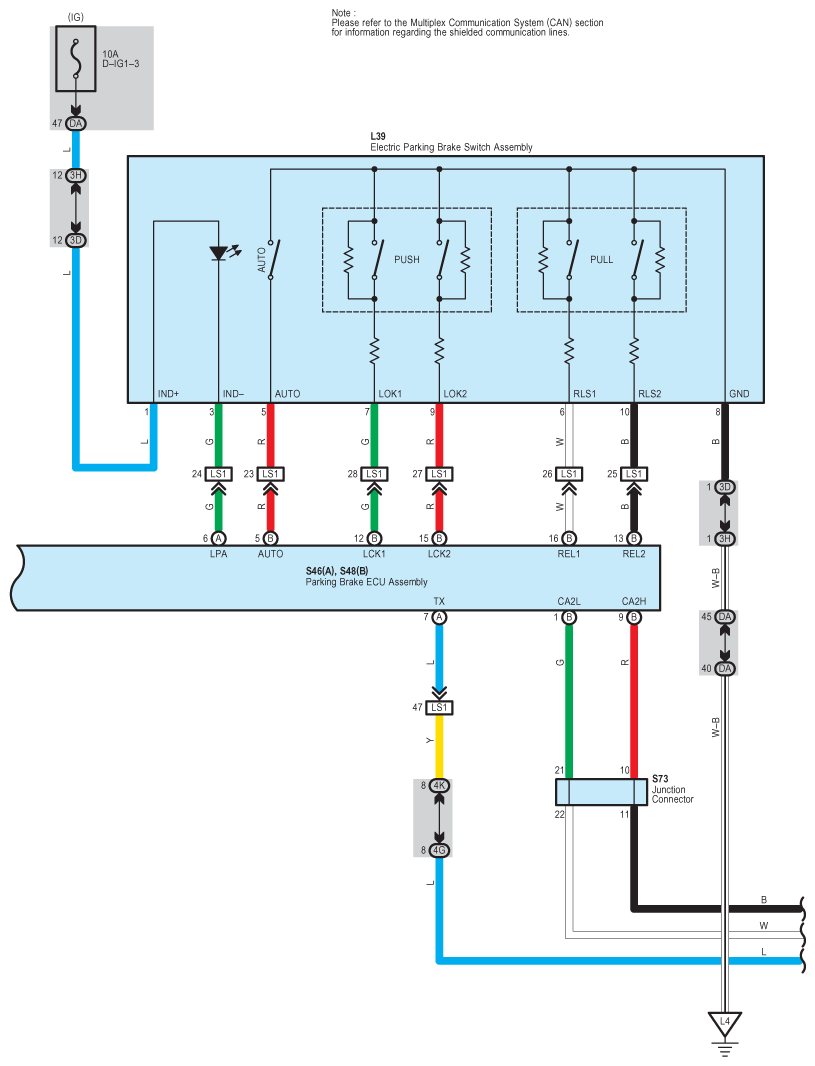

Fig 3: Electric Parking Brake - Circuit Diagram (3 Of 6)
G07607144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

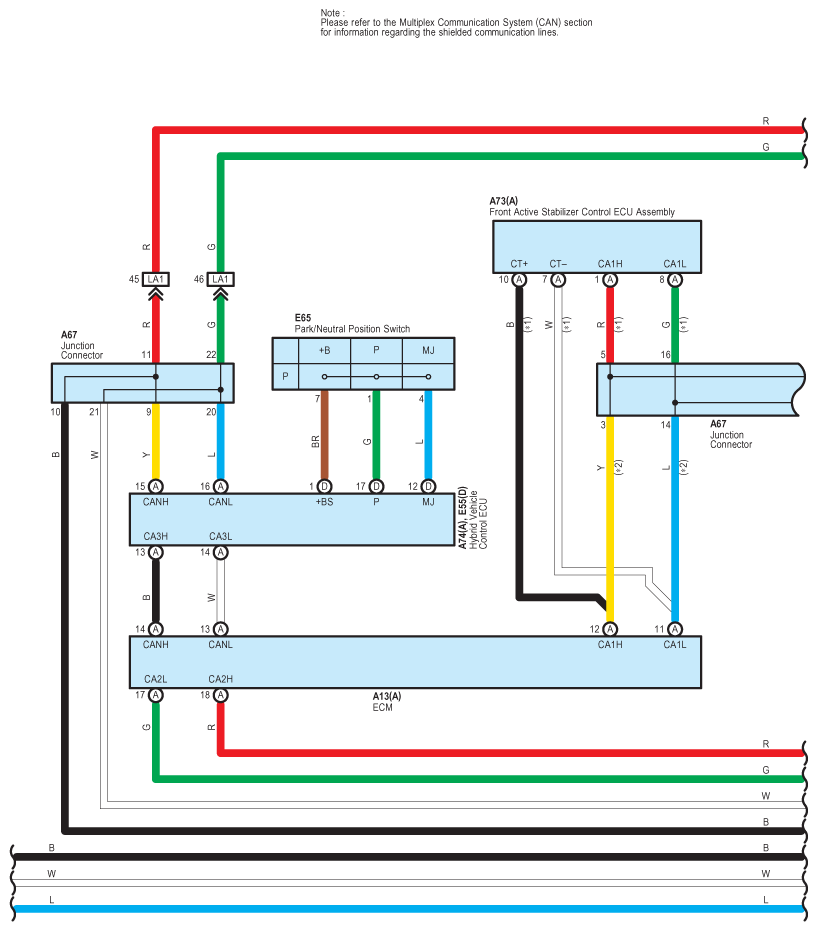

Fig 4: Electric Parking Brake - Circuit Diagram (4 Of 6)
G07607145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

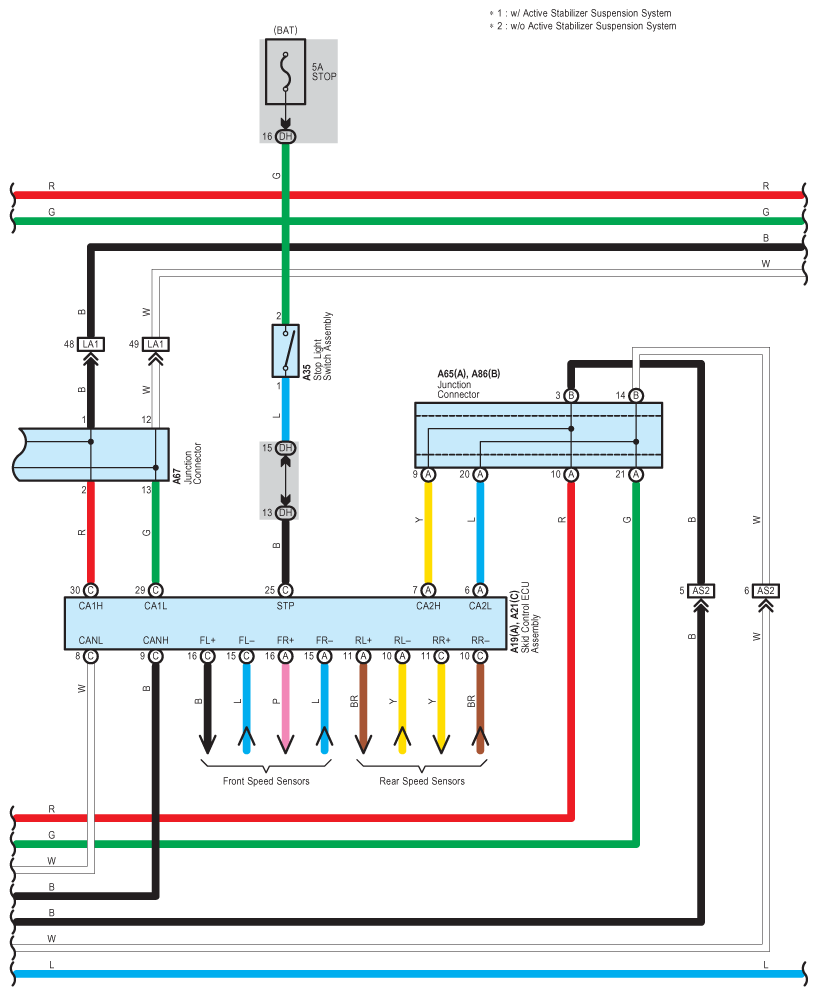

Fig 5: Electric Parking Brake - Circuit Diagram (5 Of 6)
G07607146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

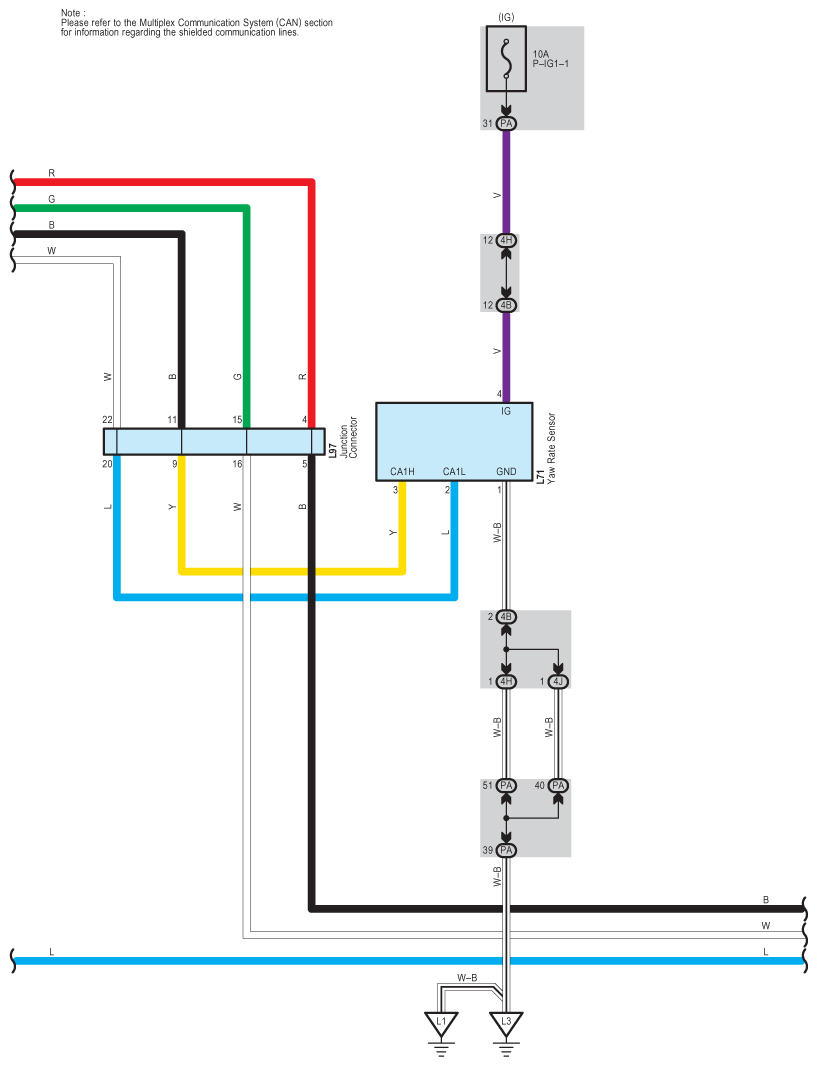

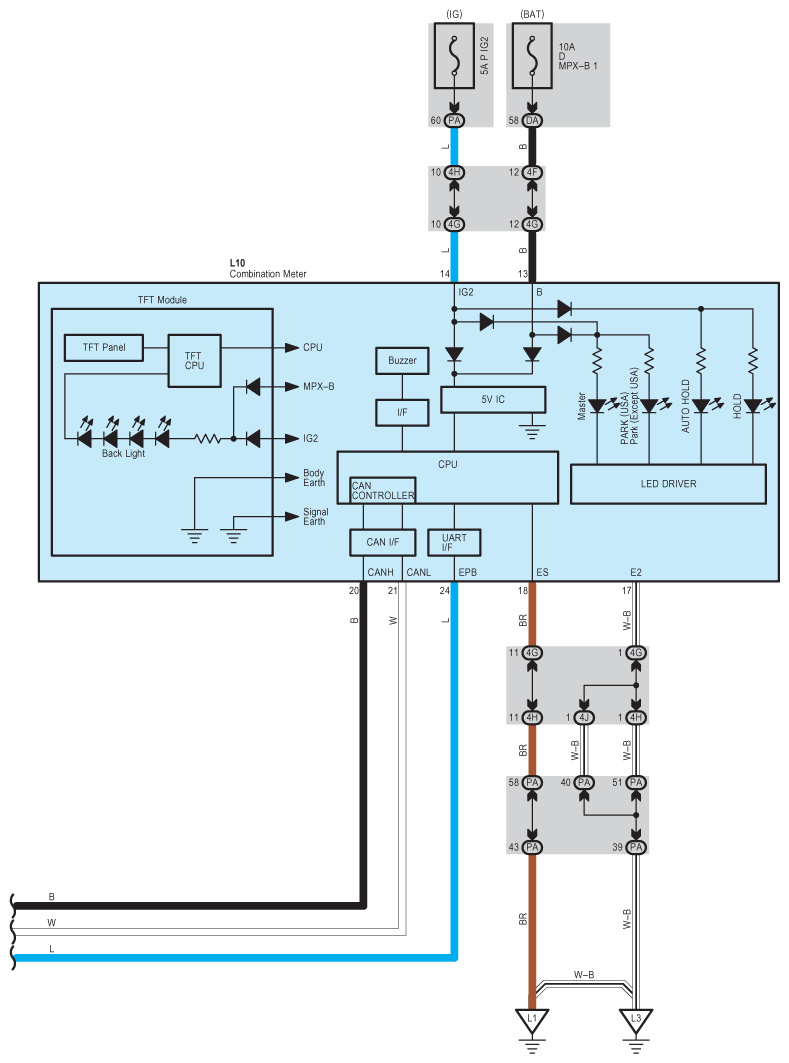

Fig 6: Electric Parking Brake - Circuit Diagram (6 Of 6)
G07607147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
