Display And Navigation Assembly: Installation: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS .

1. INSTALL NO. 2 RADIO BRACKET
   Fig 1: Locating No. 2 Radio Bracket Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the bracket with the 2 bolts.
2. INSTALL NO. 1 RADIO BRACKET
   Fig 2: Locating No. 1 Radio Bracket Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the bracket with the 2 bolts.
3. INSTALL DISPLAY AND NAVIGATION ASSEMBLY WITH BRACKET
   1. Connect the connectors.
   2. Insert the display and attach the 6 clips on its backside.

      HINT:

      Evenly push the right and left sides of the display into the instrument panel.

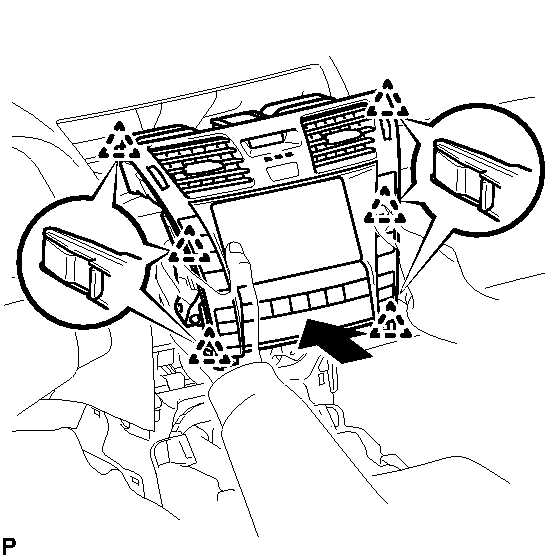

      Fig 3: Pushing Right And Left Sides Of Display Into Instrument Panel

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Install the display with the 2 bolts.

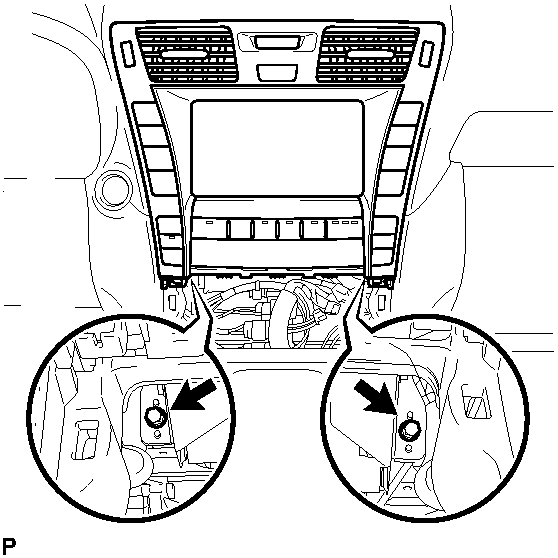

      Fig 4: Locating Display Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET  . Refer to INSTALLATION - Step 4
5. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 39
6. INSTALL REAR UPPER CONSOLE PANEL  . Refer to INSTALLATION - Step 40
7. INSTALL NO. 3 BOX PANEL  . Refer to INSTALLATION - Step 41
8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to INSTALLATION - Step 42
9. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  . Refer to INSTALLATION - Step 43
10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  . Refer to INSTALLATION - Step 44
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

12. INSTALL BATTERY SERVICE HOLE COVER LH  . Refer to INSTALLATION - Step 16
13. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  . Refer to INSTALLATION - Step 18
