Driver Side Switch Module LIN Communication Malfunction: Wiring Diagram

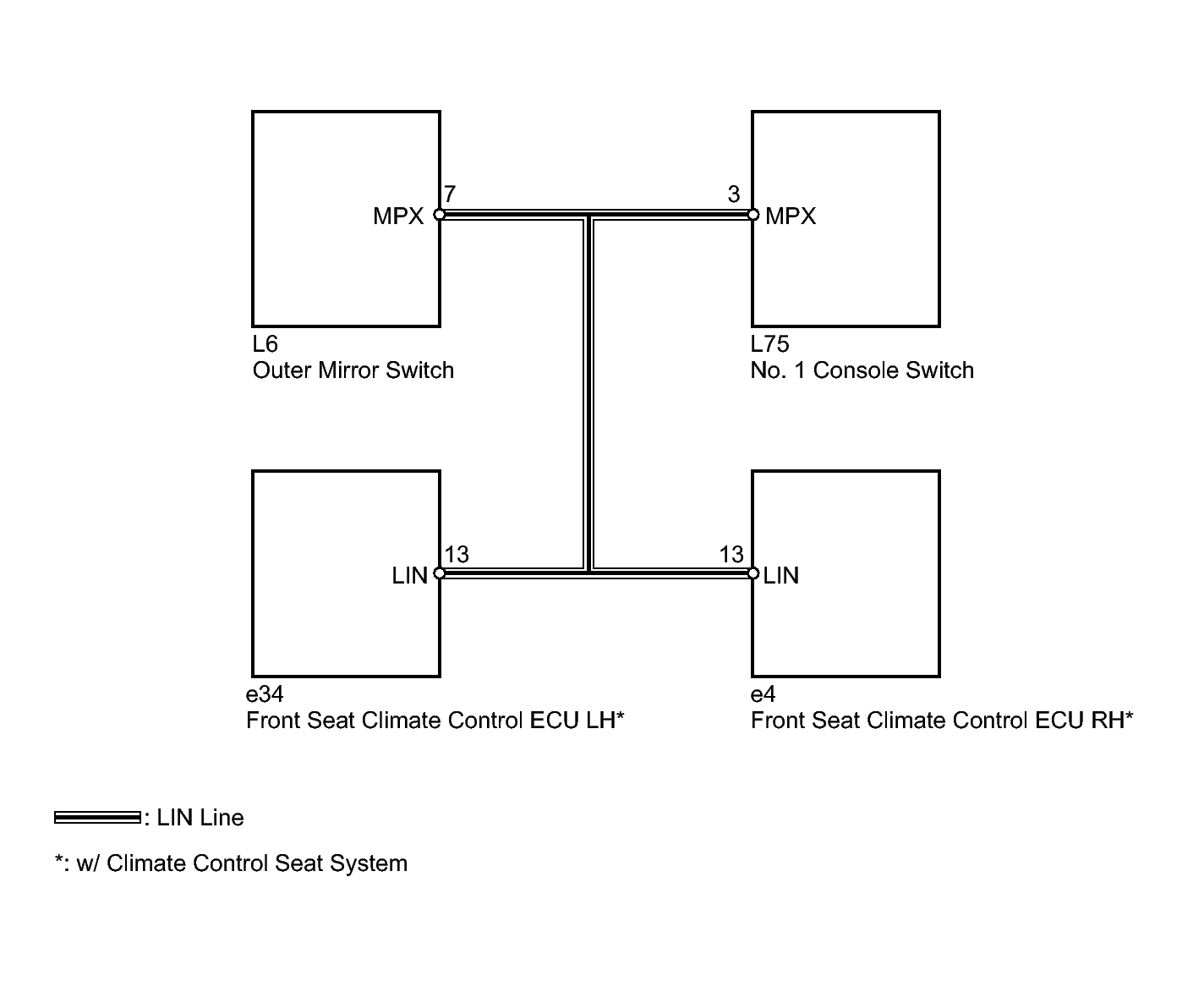

Fig 1: Front Seat Climate Control ECU RH - Wiring Diagram

GTY116356

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
