DTC 4-7: EMERGENCY, VOL+ or VOL- Button has Connection Error: Wiring Diagram

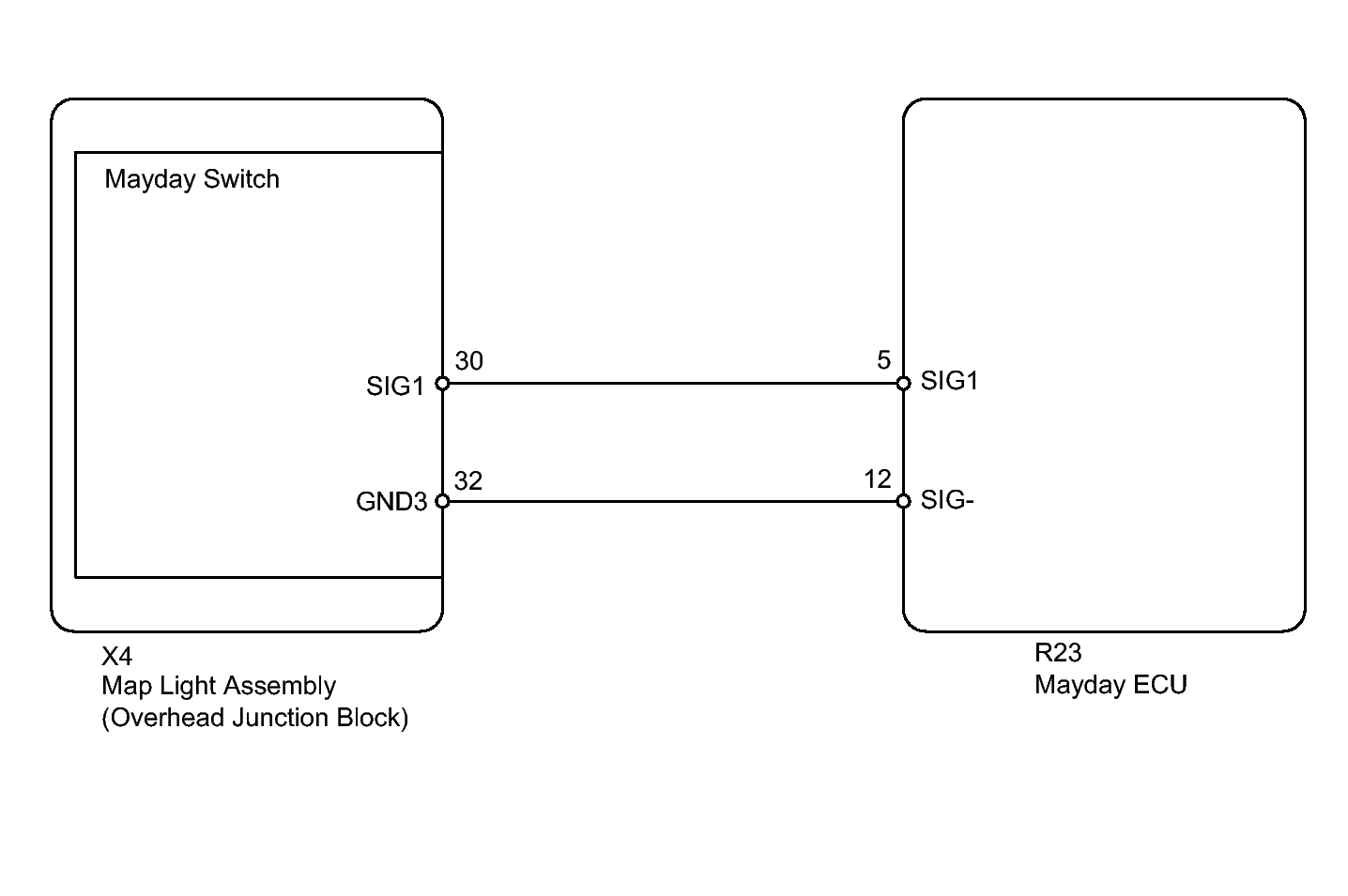

Fig 1: EMERGENCY, VOL+ Or VOL- Button Has Connection Error - Wiring Diagram

GTY136122

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
