DTC 4-6: SERVICES, PHONE or PTT Button has Connection Error: Procedure

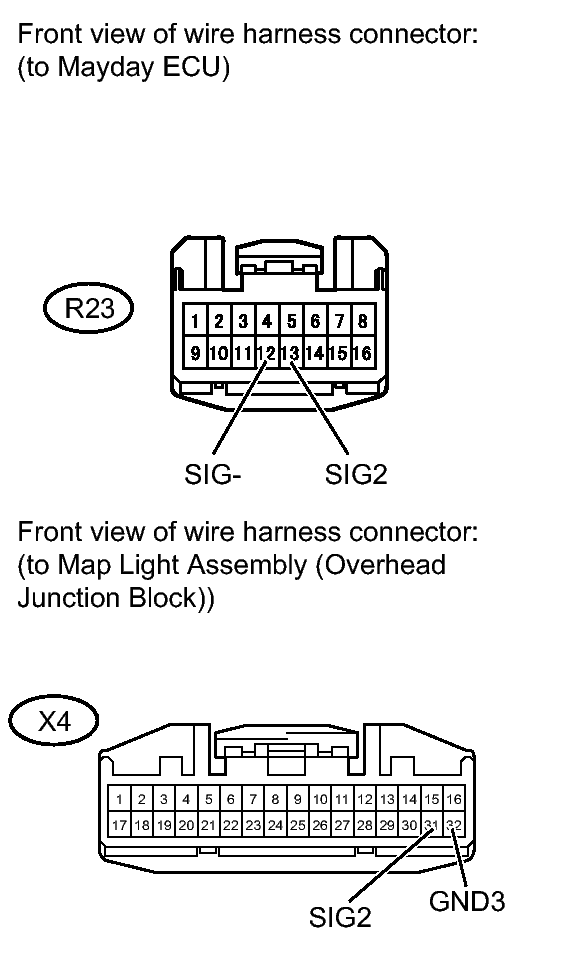

Fig 1: Identifying R23 ECU And X4 Map Light Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the R23 ECU connector.
2. Disconnect the X4 map light connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   R23-13 (SIG2) - X4-31 (SIG2)	Always	Below 1 Ω
   R23-12 (SIG-) - X4-32 (GND3)	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR THEN CLEAR HISTORIC DTC

OK: Go to next step

Fig 2: Identifying Map Light Connector End View Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the map light. Refer to REMOVAL .
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   31 (SIG2) - 32 (GND3)	SERVICES button is pressed	305 to 313 Ω
   31 (SIG2) - 32 (GND3)	PHONE button is pressed	812 to 831 Ω
   31 (SIG2) - 32 (GND3)	PTT button is pressed	1811 to 1848 Ω

NG → REPLACE MAP LIGHT ASSEMBLY (MAYDAY SWITCH) THEN CLEAR HISTORIC DTC

OK → REPLACE MAYDAY ECU TOGETHER WITH MAYDAY BATTERY AND THEN PERFORM REGISTRATION
