All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate
>>
Wiring Diagram
All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Wiring Diagram

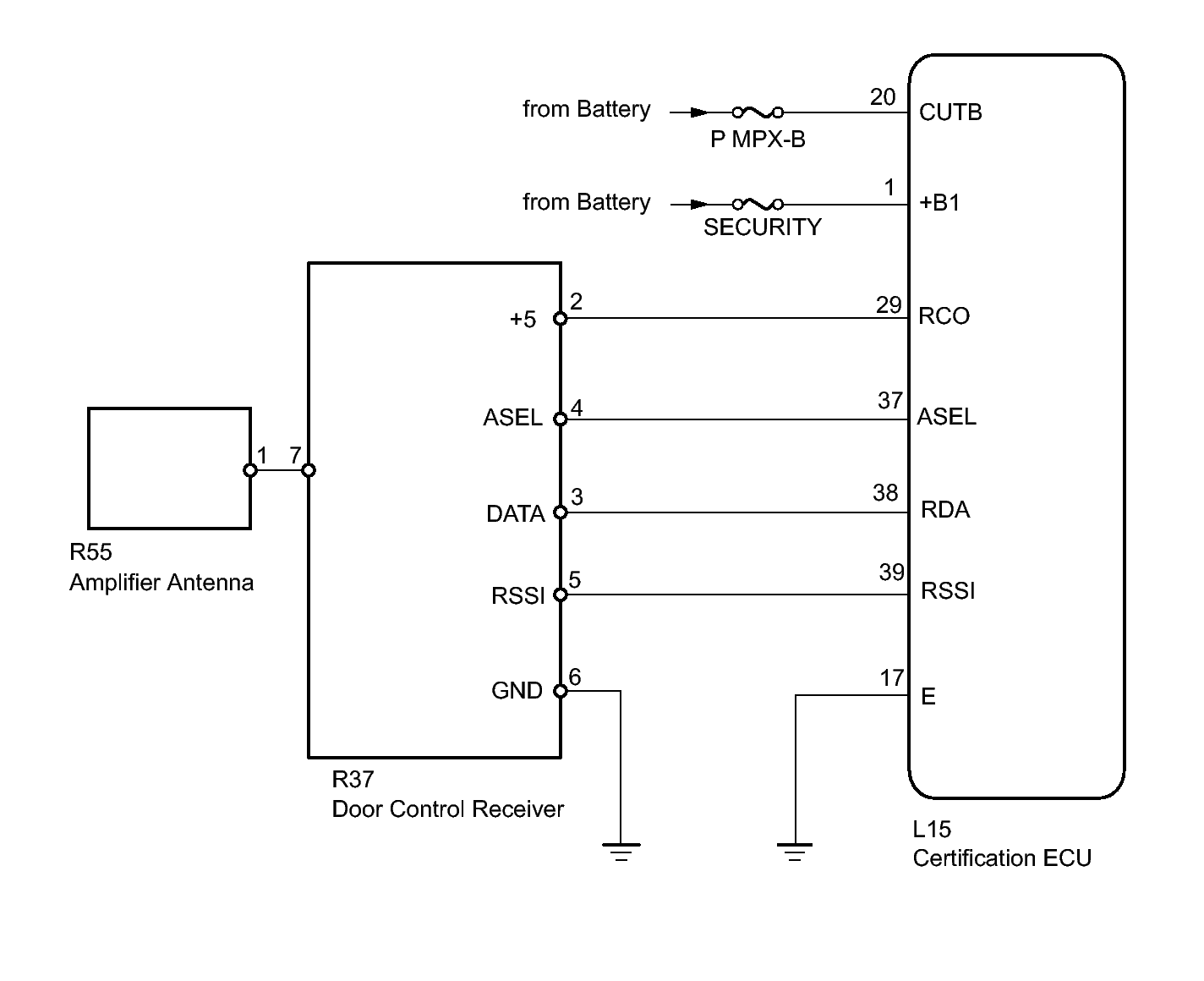

Fig 1: All Door Entry Lock/Unlock Functions and Wireless Functions Wireing Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
