Park/Neutral Position Switch: Removal

REMOVE COWL TOP VENTILATOR LOUVER (See REMOVAL )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
1. Remove the nut and disconnect the floor shift gear shifting rod.

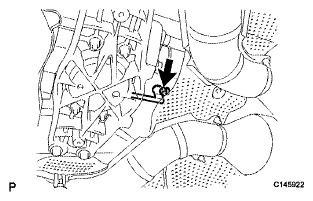

  Fig 1: Locating Floor Shift Gear Shifting Rod
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
1. Disconnect the switch connector.
2. Remove the nut, spring washer and transmission control shaft lever.

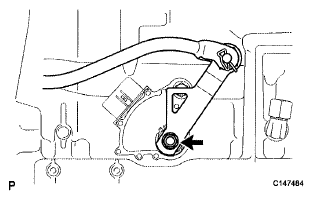

  Fig 2: Locating Transmission Control Shaft Lever Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, pry off the lock washer.

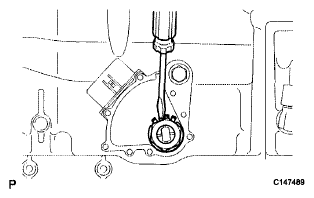

  Fig 3: Prying Lock Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the lock nut and lock washer.

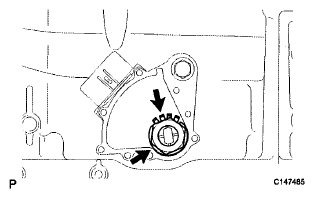

  Fig 4: Locating Lock Nut And Lock Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the bolt and switch.

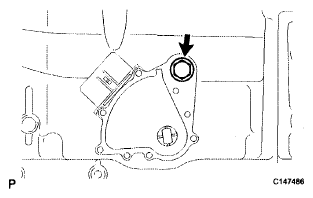

  Fig 5: Locating Park/Neutral Position Switch Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
