DTC B2272 Ignition 1 Monitor Malfunction: Wiring Diagram

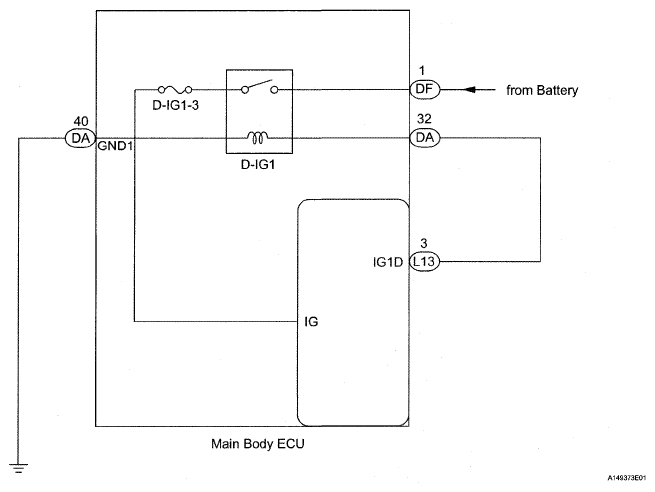

Fig 1: Main Body ECU - Wiring Diagram

G04943830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
